Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 717
Aptamer sequence: CGCCAATCTCAAAGCCCGCCACCTGCCCCTCACTGCCCACCTGTGGAATCCATGTCGCTC
Target unique ID: 6437088
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_665 | RC22 | Molecule | Microcystin YR | 155 nM | 50 mM Tris, pH 7.5, 150 mM NaCl, and 2 mM MgCl2 | 22958101 |
Structure information of aptamer
| Aptamer Sequence: | CGCCAATCTCAAAGCCCGCCACCTGCCCCTCACTGCCCACCTGTGGAATCCATGTCGCTC |
| The optimal secondary structure in dot-bracket notation: | .................((.((.((....((((.........))))....)).)).)).. |
| The centroid secondary structure in dot-bracket notation: | .................((.((.((....((((.........))))....)).)).)).. |
The MFE structure
The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_665 | Description | RC22 |
| Aptamer chemistry | DNA | Length | 60 nt |
| GC content | 63.3% | Molecular weight | 18,118.59 Da |
| Molarity of 1 μg/μl solution | 55.19 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Aptasensor |
| Sequence | CGCCAATCTCAAAGCCCGCCACCTGCCCCTCACTGCCCACCTGTGGAATCCATGTCGCTC | ||
| Applications | Application in microcystin detection | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| PubChem ID | 6437088 | Molecular name | Microcystin YR |
| Molecular formula | C52H72N10O13 | Molecular weight | 1045.2 |
| IUPAC name | (5R,8S,11R,12S,15S,18S,19S,22R)-15-[3-(diaminomethylideneamino)propyl]-8-[(4-hydroxyphenyl)methyl]-18-[(1E,3E,5S,6S)-6-methoxy-3,5-dimethyl-7-phenylhepta-1,3-dienyl]-1,5,12,19-tetramethyl-2-methylidene-3,6,9,13,16,20,25-heptaoxo-1,4,7,10,14,17,21-heptazacyclopentacosane-11,22-dicarboxylic acid | InChIKey | OWHASZQTEFAUJC-GJRPNUFSSA-N |
| LogP | 0.521 | Topological polar surface area | 363.37 |
| Hydrogen bond acceptor | 12 | Hydrogen bond donor | 11 |
Synonym(s): Microcystin YR; 101064-48-6; Microcystin-YR; UNII-4G08121T5U; CHEMBL4633668; 4G08121T5U; Cyanoginosin-YR; Cyanoginosin LA, 3-tyrosyl-5-arginine-; cyanoginosin LA, 3-L-tyrosyl-5-L-arginine; MCYR; Cyanoginosin LA, 3-L-tyrosine-5-L-arginine; DTXSID00880086; BDBM50542676; (5R,8S,11R,12S,15S,18S,19S,22R)-15-[3-(diaminomethylideneamino)propyl]-8-[(4-hydroxyphenyl)methyl]-18-[(1E,3E,5S,6S)-6-methoxy-3,5-dimethyl-7-phenylhepta-1,3-dienyl]-1,5,12,19-tetramethyl-2-methylidene-3,6,9,13,16,20,25-heptaoxo-1,4,7,10,14,17,21-heptazacyclopentacosane-11,22-dicarboxylic acid; C19997; Q27259546
Activity data
 |

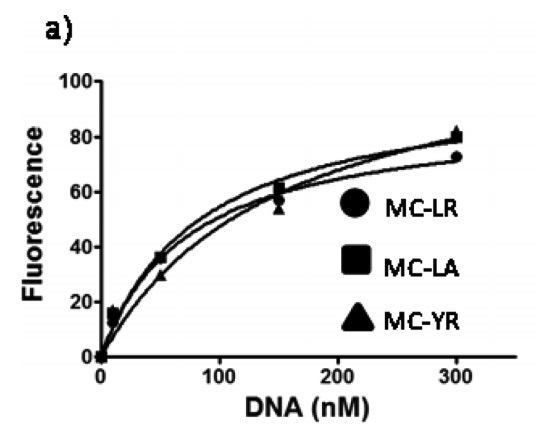

Interaction ID | 708 |
| Target type | Molecule | |
| Target unique ID | 6437382 | |
| Activity | 75 nM | |
| Binding Conditions/Buffer | 50 mM Tris, pH 7.5, 150 mM NaCl, and 2 mM MgCl2 |
|
| Assay | Determination of the dissociation constants (KD) for aptamers. On the basis of the fluorescence recovered, saturation curves were obtained and the dissociation constants were calculated by nonlinear regression analysis |
|
| PubMed ID | 22958101 | |
 |

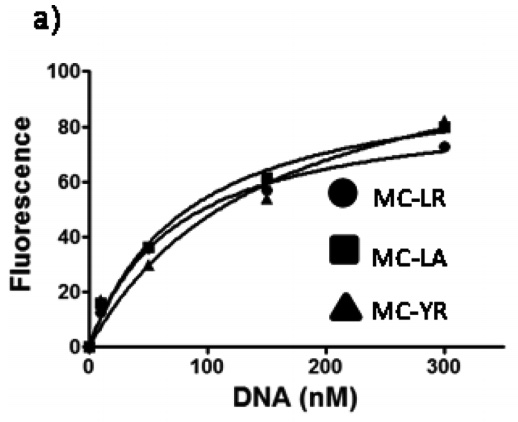

Interaction ID | 712 |
| Target type | Molecule | |
| Target unique ID | 445434 | |
| Activity | 84 nM | |
| Binding Conditions/Buffer | 50 mM Tris, pH 7.5, 150 mM NaCl, and 2 mM MgCl2 |
|
| Assay | Determination of the dissociation constants (KD) for aptamers. On the basis of the fluorescence recovered, saturation curves were obtained and the dissociation constants were calculated by nonlinear regression analysis |
|
| PubMed ID | 22958101 | |
 |

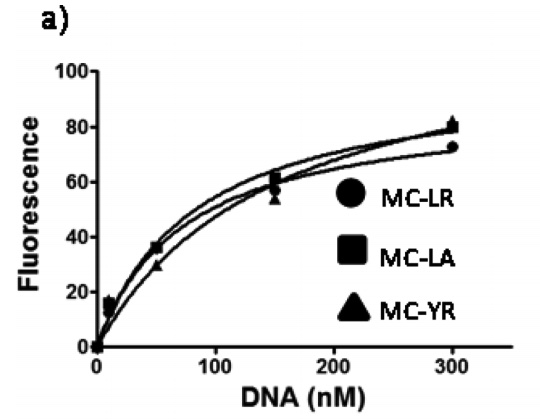

Interaction ID | 717 |
| Target type | Molecule | |
| Target unique ID | 6437088 | |
| Activity | 155 nM | |
| Binding Conditions/Buffer | 50 mM Tris, pH 7.5, 150 mM NaCl, and 2 mM MgCl2 |
|
| Assay | Determination of the dissociation constants (KD) for aptamers. On the basis of the fluorescence recovered, saturation curves were obtained and the dissociation constants were calculated by nonlinear regression analysis |
|
| PubMed ID | 22958101 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_1291 | DNA | CGTACGGAATTCGCTAGCCCCCCGGCAGGCCACGGCTTGGGTTGGTCCCACTGCGCGTGGATCCGAGCTCCACGTG | |
| Apta_866 | DNA | CTCCTCTGACTGTAACCACGACCGCCTTCCACCGTTCTCCACCACCCCTCAAACAACCCTGCATAGGTAGTCCAGAAGCC | |
| Apta_867 | DNA | CTCCTCTGACTGTAACCACGCCACCGAGCCTACCACATGTGACATCCCAGGACATAGCTGGCATAGGTAGTCCAGAAGCC | |
| Apta_1004 | DNA | ATAGGAGTCGACCGACCAGACCCGACCTCTCTTTCACTGTGACACAATGGTGCGTCTACATCTAGACTC | |
| Apta_1010 | DNA | ATAGGAGTCGACCGACCAGACCGACCCTCGTCGTACCAACTGATGACCTAGTGGCGTCTACATCTAGACTC | |
| Apta_221 | DNA | GTCCTAGCAGACACTCGGCCATCACGCCCATTGGTTTGCA | |
| Apta_1264 | DNA | CAACGATCGTACCACAGTACCCACCCACCAGCCCCAACATCATGCCCATGCGTCGGTGTG | |
| Apta_881 | DNA | AGCGTCGAATACCACTACAGCCCGCACTCAACCACCGTTCCTTTGTTTAATTTTGCACATCTAATGGAGCTCGTGGTCAG | |
| Apta_952 | DNA | TCACCTCATACGACTCACTATAGCGGACCCCACTCACTGCTCGGACTCTCCCCCTCCCCGCCTGGCTCGAACAAGCTTGC | |
| Apta_1003 | DNA | ATAGGAGTCGACCGACCAGACCCCGCCTCTCCTTTCATGTGACACAATGGTGCGTCTACATCTAGACTC | |
| Apta_1005 | DNA | ATAGGAGTCGACCGACCAGACCCGACCTCTCCTTTCATGTGACACAATGGTGCGTCTACATCTAGACTC | |
| Apta_1009 | DNA | ATAGGAGTCGACCGACCAGACCAACCCTACGCTCGTACCAACCAGATGACCTACGTGGCGTCTACATCTAGACTC | |
| Apta_863 | DNA | CTCCTCTGACTGTAACCACGCCCAGAAACAGCACCCTTACATCGACTGGACCTTCCGCGGCATAGGTAGTCCAGAAGCC | |
| Apta_817 | DNA | TGCGTGAGCGGTAGGCCCCTACGACCCACTGTGGTTGGGC | |
| Apta_873 | DNA | CCACCGAGCCTACCACATGTGACATCCCAGGACATAGCTG | |
| Apta_1072 | DNA | TTGAAGTGACTCCCACCCCGCCCCACCGTCCTTGCCACCGTTCCGCCATAGCAGGT | |
| Apta_1228 | DNA | GGCCACCAAACCACACCGTCGCAACCGCGAGAACCGAAGTAGTGATCATGTCCCTGCGTG | |
| Apta_1265 | DNA | CACGCACACAACAGCCAATAATGTATAACGCTGTCCACTGTGTGGTGTCCCCCGCGTCG | |
| Apta_1113 | DNA | CCGCCCAAATCCCTAAGAGCACAAACACCAAACACAACCACCCCAACCAGACACACTACACACGCA | |
| Apta_1007 | DNA | ATAGGAGTCGACCGACCAGACCCGACCTCTCTTTCATGTGACACAATGGTGCGTCTACATCTAGACTC |
