Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 124
Aptamer sequence: GGGAGAAAGGGAAGCUUGAGCAGCAGGAGGGCCGGCGUUAGGGUUAGCGAGCCGAUUGAAAGAAGAAGGAACGAGCGUACGGAUCCGAUC
Target unique ID: P01303
Aptamer ID Aptamer descriptor Target chemistry Target name Affinity Binding Conditions/Buffer PubMed ID
Apta_123 DP3 Protein NPY_HUMAN 0.37 μM 0.9 mM KH2P4, Na2HPO4, 70 mM NaCl, 1.3 mM KCl, 1% heparin, 0.4 g/l of streptavidin, pH 7.6 11756401
Structure information of aptamer
Aptamer Sequence: GGGAGAAAGGGAAGCUUGAGCAGCAGGAGGGCCGGCGUUAGGGUUAGCGAGCCGAUUGAAAGAAGAAGGAACGAGCGUACGGAUCCGAUC
The optimal secondary structure in dot-bracket notation: .(((.........(((((.....(((...(((..((..........))..)))..))).............))))).......)))....
The centroid secondary structure in dot-bracket notation: .............((...........................................................))..............

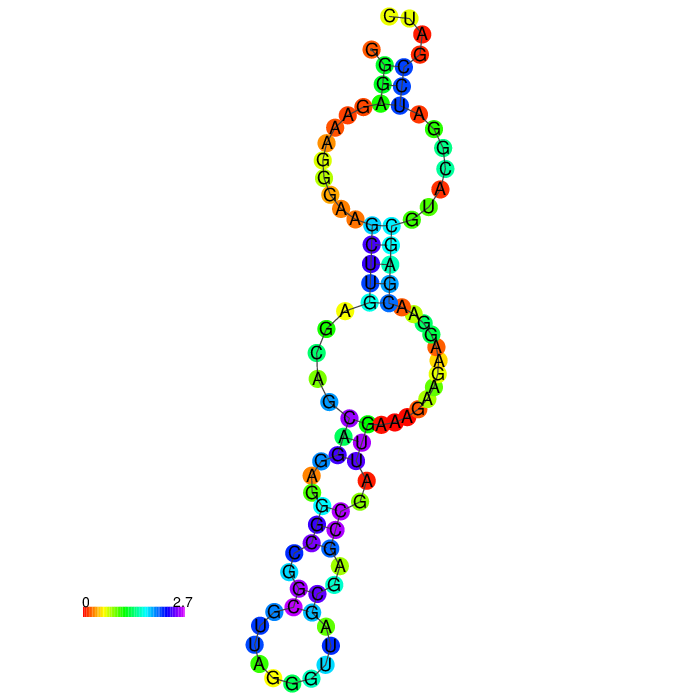

The MFE structure

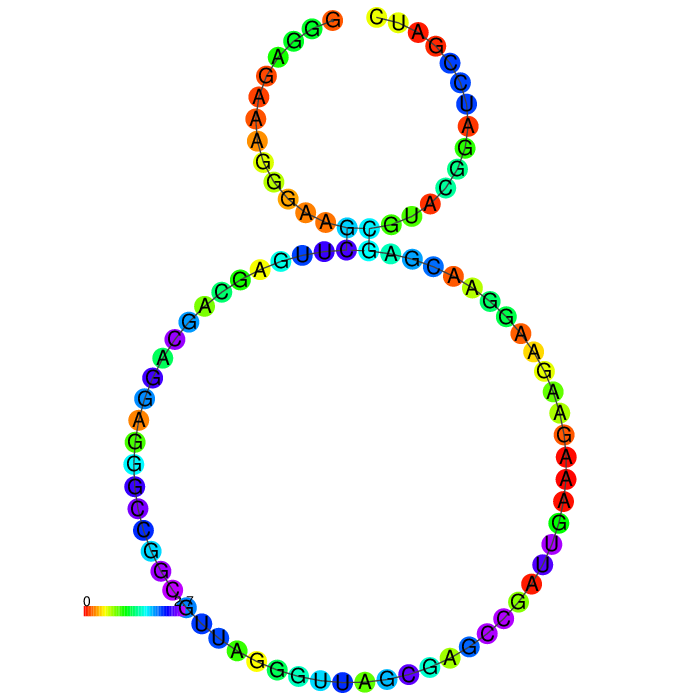

The Centroid structure
The mountain plot representation
Aptamer information
Type Detail Type Detail
Aptamer ID Apta_123 Description DP3
Aptamer chemistry RNA Length 90 nt
GC content 57.8% Molecular weight 29,784.69 Da
Molarity of 1 μg/μl solution 33.57 μM Number of G-quadruplexes 3
G-Score 56 Function Targeted binding
Sequence GGGAGAAAGGGAAGCUUGAGCAGCAGGAGGGCCGGCGUUAGGGUUAGCGAGCCGAUUGAAAGAAGAAGGAACGAGCGUACGGAUCCGAUC
Applications Binding to target proteins
Target information
Type Detail Type Detail
Uniprot ID P01303 Protein name Pro-neuropeptide Y [Cleaved into: Neuropeptide Y (Neuropeptide tyrosine) (NPY); C-flanking peptide of NPY (CPON)]
Gene name(s) NPY Organism Pro-neuropeptide Y [Cleaved into: Neuropeptide Y (Neuropeptide tyrosine) (NPY); C-flanking peptide of NPY (CPON)]
Status reviewed in uniprot database Length 97
Mass 10,851 Activity regulation N/A
Involvement in disease N/A Catalytic activity N/A
PDB ID(s)
1QFA;1RON;7RTA;7VGX;
Function NPY is implicated in the control of feeding and in secretion of gonadotrophin-release hormone.
Activity data

No relevant experimental diagram

 Interaction ID 124
Target type Protein
Target unique ID P01303
Activity 0.37 μM
Binding Conditions/Buffer

0.9 mM KH2P4, Na2HPO4, 70 mM NaCl, 1.3 mM KCl, 1% heparin, 0.4 g/l of streptavidin, pH 7.6
Assay

N/A
PubMed ID 11756401
Similar aptamers
Aptamer ID Aptamer chemistry Sequence Similarity
Apta_500 RNA GGGAGAAAGGGAAGCUUGAGGUGCUAUGGAGUGGAGGAGUUGAAGGUGUCGGGGUUGGCAGAAGAAGGCGAGCGUACGGAUCCAUC 75.56%
Apta_400 RNA GGGAGGACGAUGCGGAUACCAGCGAAUAACUCGCUGAGGAACCCGACUCACAAACAGACGACUCGCUGAGGAUCCGAGA 54.44%
Apta_414 RNA GGGAGGACGAUGCGGCCGAUUAGAACUGGGCUGAGGCGUUCUGCAUUUCGGUGAUCAGACGACUCGCUGAGGAUCCGAGA 54.44%
Apta_613 RNA GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGCAUGAUGCAGAAGGACGUCGAAACGGUAGCGAGAGCUC 54.44%
Apta_256 RNA GGGCGCUAAGUCCUCGCUCAUGCGCGUCCCAUGGGGUAUAGAGGGGUCGAAGUGGACGCGCGACUCGGAUCCU 53.33%
Apta_415 RNA GGGAGGACGAUGCGGAAACUCAUCGGUAGCCUUCCUGCGGUCAGUCUAUUAGGACCAGACGACUCGCUGAGGAUCCGAGA 53.33%
Apta_547 RNA GGGAGAAGGCGGCGCGUAGGCGAGCUUUAGGCCCGACAUUCCCCUAAAAAAGCUUGUUCUAUUCGUGGACGAUGCGCAC 53.33%
Apta_723 RNA GGGAGCUCAGAAUAAACGCUCAAAUCCGUGGACAGGGCGUAAGCGCCUUCGACAUGAGACACGGAUCCUGCGACGAAUUCAGC 53.33%
Apta_895 RNA ACCGAGUCCAGAAGCUUGUAGUACUACCGCAACGUUGGCGUUCGGCGUUGGCCGCGUCAUCGCUAGCCUAGAUGGAGUUGAAUUCUCCCUAUAGUGAGUCGUAUUAC 53.27%
Apta_874 RNA GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACAGAAGGACGUCGAAACGGUAGCGAGAGCUC 52.99%
Apta_130 RNA GGGAGGACGAUGCGGUGGUAGCGCGAUAUAGCGCUGGUAGGGUUGCCGGUGAUCAGACGACUCGCCCGA 52.22%
Apta_399 RNA GGGAGGACGAUGCGGCAAACCAGCUAUUUCCUGAGGUACCCCGGCUCUCCAUGGCAGACGACUCGCUGAGGAUCCGAGA 52.22%
Apta_793 RNA GGGAGAGAACAAUGACCUGCGGUGCCAAGCCGUCGGGUUAUGUUGAUCUCCUCAAGGACGAGUGCAUUGCAUCACGUCAGUAG 52.22%
Apta_886 RNA GGGAGACGAUAUUCGUCCAUUCGGGUGGCCCGUGUCUGAGCGGGGACGGCCACUUGAGCGCCGCUGUCCGACUGAAUUCUCGACC 52.22%
Apta_1057 RNA UCUGAGGGGUUGGGGCCGCAGUCUCGUCGCCAUGGCUAACGAGGCCGGAACUAGUUUUAGCCGAAAUGAUCGAUGC 52.22%
Apta_376 RNA GGGAGCUCAGCCUUCACUGCACUCCGGCUGGUGGACGCGGUACGAGCAAUUUGUACCGGAUGGAUGUUCGGGCAGCGGUGUGGCAGGGAUGAGCGGCACCACGGUCGGAUCCAC 51.75%
Apta_430 RNA GGGAUAUCCUCGAGCAUAAGAAACAAGAUAGAUCCUGAAACUGUUUUAAGGUUGGCCGAUCUUCUGCUCGAGAAUGCAUGAAGCGUUCCAUAUUUUU 51.55%
Apta_936 RNA GGAGCUCAGCCUUCACUGCGAUCACCGUGUCGGUGGCUAGUCGAUGUAUCCCGAUCACCAUUGGGGGCAAGUUUAGACAGGCACCACGGUCGGAUCCAC 51.52%
Apta_720 RNA GGGAGAAUUCCGACCAGAAGCUUAGUAUAGCGAGGUUUAGCUACACUCGUGCUGAUCGUUUGGUACGGGACCUGCGUGUAGCCCAUAUGUGCGUCUACAUGGAUCCUCA 51.38%
Apta_171 RNA GGGAGCUCAGAAUAAACGCUCAACCAGUCUUGUGGCUUUGAAAGAGAGGAGUGUUCGACAUGAGGCCCGGAUCCGGC 51.11%
