Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 1022
Aptamer sequence: GACGCTTACTCAGGTGTGACTCGTGAACCCACCTCAGGGCATCTTACATTTCTTCTAAGTTGTTACCATGTTTCGAAGGACGCAGATGAAGTCTC
Target unique ID: Other-37
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_934 | GVI-7 | Other | GCRV-infected CIK cell | 176.63 nM | 10% FBS | 32959408 |
Structure information of aptamer
| Aptamer Sequence: | GACGCTTACTCAGGTGTGACTCGTGAACCCACCTCAGGGCATCTTACATTTCTTCTAAGTTGTTACCATGTTTCGAAGGACGCAGATGAAGTCTC |
| The optimal secondary structure in dot-bracket notation: | .((((((....))))))((((......(((......)))(((((.....((((((.((..((....))..))..))))))...))))).)))).. |
| The centroid secondary structure in dot-bracket notation: | .((((((....))))))((((......(((......)))...........(((((...................)))))..........)))).. |
The MFE structure
The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_934 | Description | GVI-7 |
| Aptamer chemistry | DNA | Length | 95 nt |
| GC content | 47.4% | Molecular weight | 29,199.69 Da |
| Molarity of 1 μg/μl solution | 34.25 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Targeted binding |
| Sequence | GACGCTTACTCAGGTGTGACTCGTGAACCCACCTCAGGGCATCTTACATTTCTTCTAAGTTGTTACCATGTTTCGAAGGACGCAGATGAAGTCTC | ||
| Applications | Recognize and bind to GCRV-infected cells | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Target ID | Other-37 | Name | GCRV-infected CIK cell |
Activity data
 |
Interaction ID | 1022 |
| Target type | Other | |
| Target unique ID | Other-37 | |
| Activity | 176.63 nM | |
| Binding Conditions/Buffer | 10% FBS |
|

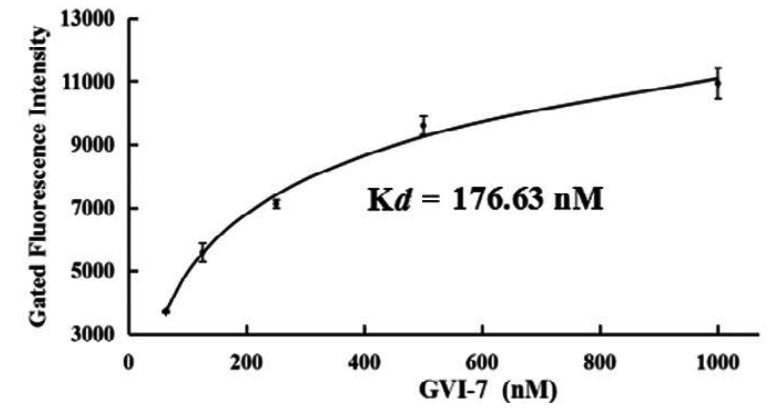

| Assay | Apparent equilibrium dissociation constant (Kd) of each aptamer binding to target GCRV-CIK cells. The concentrations of FAM-labelled aptamer candidates were diluted to 0-1,000 nM in PBS, respectively, and then incubated with target GCRV-CIK cells (5 × 10**5) at 4°C for 30 min. The binding fluorescence intensities of aptamer-target cells were detected by flow cytometry. Kd of each aptamer candidate was calculated according to the equation Y = BmaxX/(Kd + X) by SigmaPlot software |
|
| PubMed ID | 32959408 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_933 | DNA | GACGCTTACTCAGGTGTGACTCGGGGTGTAGCTCGTTATGATTCGGACAAGACTTACCTTGCGCCTCTGGGATCGAAGGACGCAGATGAAGTCTC | |
| Apta_935 | DNA | GACGCTTACTCAGGTGTGACTCGTCCGTCGGTTCGCCTTGCGAGTGCACGCCGCCAGCCGTTACATAAAGTCTGCCCACTCGAAGGACGCAGATGAAGTCTC | |
| Apta_770 | DNA | GAATTCAGTCGGACAGCGGCATTTACATTCCATGGGAAATTTCTCAAGCGGTATTTCATTTCGATGGACGAATATCGTCTCCC | |
| Apta_921 | DNA | ATCCAGAGTGACGCAGCACGAGCCAGACATCTCACACCTGTTGCATATACATTTTGCATGGACACGGTGGCTTAGT | |
| Apta_1184 | DNA | GAATTCAGTCGGACAGCGTAATCCCTTGTGTTTGACGTTCGAAGATTATTTCTATCTTTTAGGATGGACGAATATCGTCTCCC | |
| Apta_881 | DNA | AGCGTCGAATACCACTACAGCCCGCACTCAACCACCGTTCCTTTGTTTAATTTTGCACATCTAATGGAGCTCGTGGTCAG | |
| Apta_1108 | DNA | GTGCTTAGGTGCAGAACGCACACACGCTCGGTATGACGTGTTCGCTACGGTATAATTGCAGGCGCGAGCACAACAG | |
| Apta_1175 | DNA | ATGAGAGCGTCGGTGTGGTATCCTACTCGTGATATCGGTGTTTATGGTGTCTGTCTTCATGTAGGAGGGTGCGGAAGTA | |
| Apta_860 | DNA | CACGGATCCTGACAAGGATGTGTGCGTTGTCGAGACCTGCGACCGGAACACTACACTGTGTGGGATGGATTTCTTTACAGTTGTGTGCAGCTCCGTCCGACTCTTCCTAGCTATGGTTCGATCAAGA | |
| Apta_704 | DNA | GTACGAATTCACGAGGTTGCCAGCGGGGCCAGCCACTTCTGTCAGTGAATTCCTGCTCGTATATCTACTCGCCCGCCTGCGAGCATGGAGTCGGATCCTCTA | |
| Apta_527 | DNA | ATACGGGAGCCAACACCAACAACCTAGATGTTCTGATAACACGAATCGCTTCGAAGAGCAGGTGTGACGGAT | |
| Apta_768 | DNA | GAATTCAGTCGGACAGCGGCACTTGCGACACGTTTGTCGGGTAAATGCGTGTATTTTCTTTTCGATGGACGAATATCGTCTCCC | |
| Apta_932 | DNA | ATACGACTCACTATTAGGGATGTCCACCATATAGATCGATTTAAGTCCCTCGTTATTAATGCTAGACTACTGACTACAA | |
| Apta_997 | DNA | ATAGGAGTCGACCGACCAGACCCCGCCTCTCCTTTTCATGTGACACAATGGTGCGTCTACATCTAGACTC | |
| Apta_1004 | DNA | ATAGGAGTCGACCGACCAGACCCGACCTCTCTTTCACTGTGACACAATGGTGCGTCTACATCTAGACTC | |
| Apta_1015 | DNA | ATACCAGCTTATTCAATTGACCCGTTTCGTTCCCTCTGGGAAGTTTAGCCCAGTTGCCTGGGCGATACCAAGATAGTAAGTGCAATCT | |
| Apta_1102 | DNA | TACGACTCACTATAGGGATCCGTGACTGTACGGGCTCAGTCGTTACTTGAGAGTTGAATTCCCTTTAGTGAGGGTT | |
| Apta_1180 | DNA | GAATTCAGTCGGACAGCGCAATTGTGGTTCTTACCCTATCCCTTGTGTTTGGCGTTCGTTGCGATGGACGAATATCGTCTCCC | |
| Apta_82 | DNA | GGCTTTACACTTTATGCTTCCGAAACAACGCAGAAAGTCTTTACAACATTACATAACAATTTCACACAGGAAACAG | |
| Apta_104 | DNA | AGCAGCACAGAGGTCAGATGCAAACCACAGCCTGAGTGGTTAGCGTATGTCATTTACGGACCTATGCGTGCTACCGTGAA |
