Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 508
Aptamer sequence: GGACGCGUGGUACCAGGCCGAUCUAUGGACGCUAUAGGCACACCGGAUACUUUAACGAUUGGCUAAGCUUCCGCGGGGAUC
Target unique ID: Q9NSA3
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_499 | RNA aptamer for β-catenin | Protein | CNBP1_HUMAN | 5 nM | 25 mM HEPES (pH 7.5), 150 mM NaCl, 1 mM MgCl2, 2 mM DTT, and 40 U RNase inhibitor | 17079480 |
Structure information of aptamer
| Aptamer Sequence: | GGACGCGUGGUACCAGGCCGAUCUAUGGACGCUAUAGGCACACCGGAUACUUUAACGAUUGGCUAAGCUUCCGCGGGGAUC |
| The optimal secondary structure in dot-bracket notation: | ....((.((....)).)).(((((.((((.(((.(((.((...((..........))..)).)))))).))))...))))) |
| The centroid secondary structure in dot-bracket notation: | ...............((((((((.................................))))))))................. |

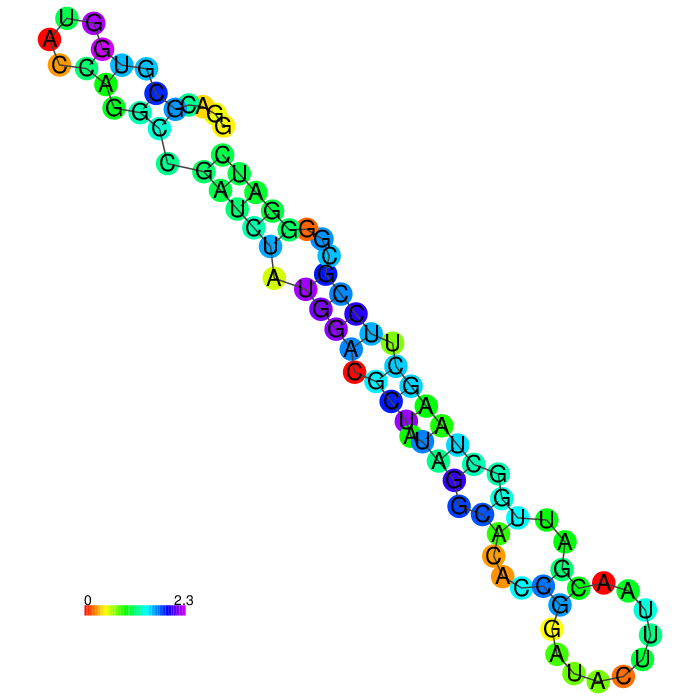

The MFE structure

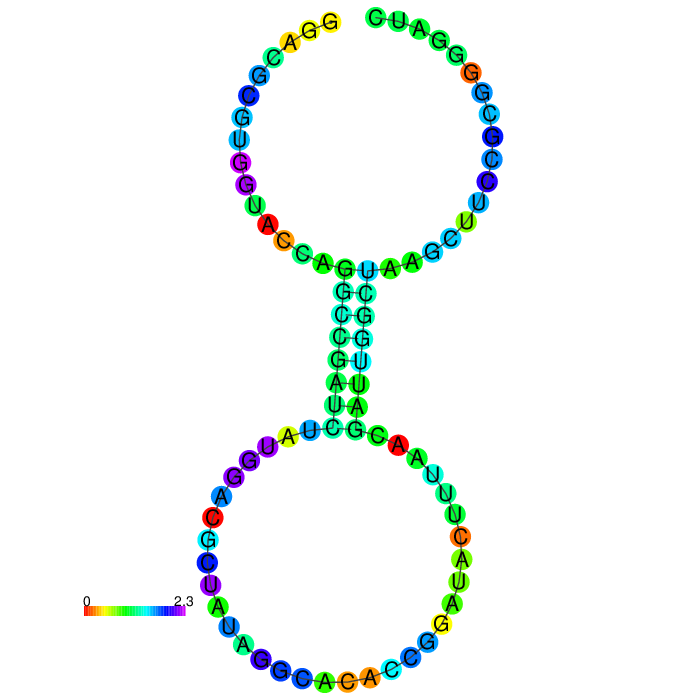

The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_499 | Description | RNA aptamer for β-catenin |
| Aptamer chemistry | RNA | Length | 81 nt |
| GC content | 56.8% | Molecular weight | 26,107.51 Da |
| Molarity of 1 μg/μl solution | 38.30 μM | Number of G-quadruplexes | 2 |
| G-Score | 18 | Function | Targeted therapy |
| Sequence | GGACGCGUGGUACCAGGCCGAUCUAUGGACGCUAUAGGCACACCGGAUACUUUAACGAUUGGCUAAGCUUCCGCGGGGAUC | ||
| Applications | Inhibited B-catenin-dependent transcription of cyclin D1 and c-myc in colon cancer cells | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Uniprot ID | Q9NSA3 | Protein name | Beta-catenin-interacting protein 1 (Inhibitor of beta-catenin and Tcf-4) |
| Gene name(s) | CTNNBIP1 ICAT | Organism | Beta-catenin-interacting protein 1 (Inhibitor of beta-catenin and Tcf-4) |
| Status | reviewed in uniprot database | Length | 81 |
| Mass | 9,170 | Activity regulation | N/A |
| Involvement in disease | N/A | Catalytic activity | N/A |
| PDB ID(s) | 1LUJ;1M1E;1T08; |
 |
Function | Prevents the interaction between CTNNB1 and TCF family members, and acts as negative regulator of the Wnt signaling pathway. |
Activity data
 |
Interaction ID | 508 |
| Target type | Protein | |
| Target unique ID | Q9NSA3 | |
| Activity | 5 nM | |
| Binding Conditions/Buffer | 25 mM HEPES (pH 7.5), 150 mM NaCl, 1 mM MgCl2, 2 mM DTT, and 40 U RNase inhibitor |
|

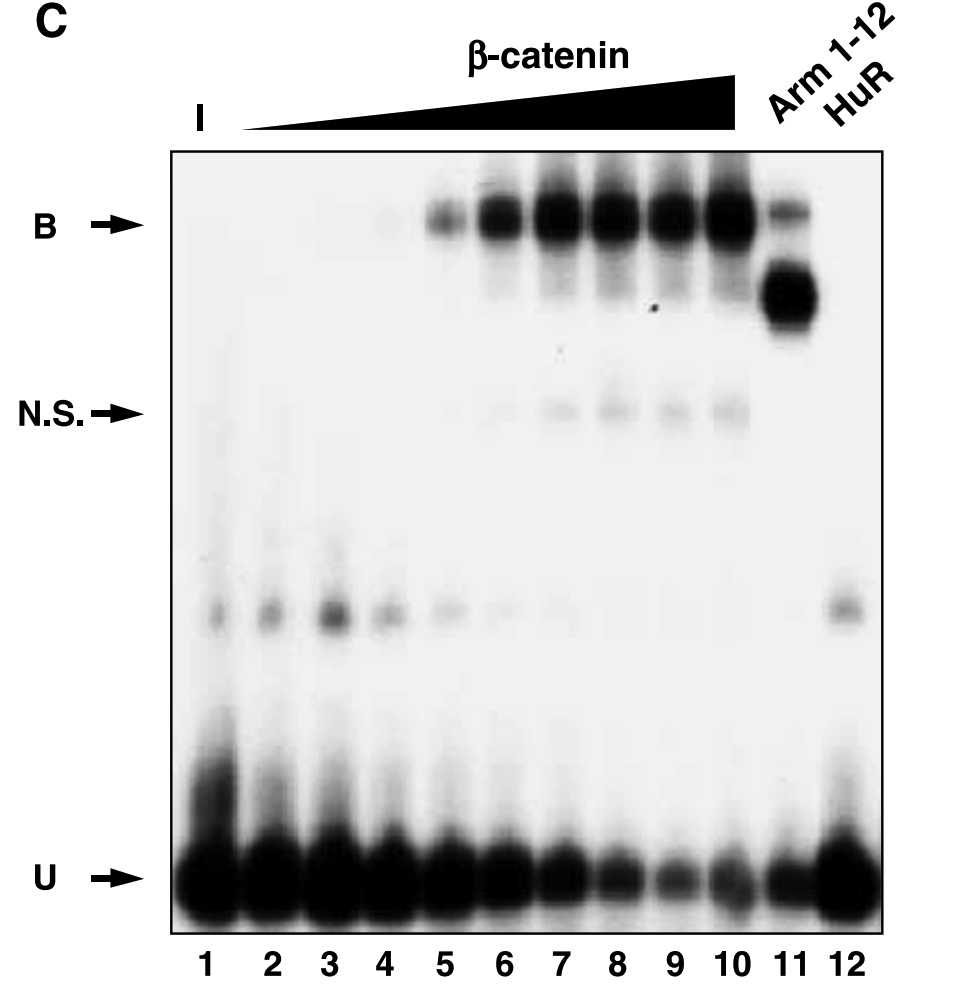

| Assay | RNA-EMSAs. [32P]UTP-labeled RNA aptamer (80 pmol/L) was incubated with increasing concentrations of recombinant h-catenin |
|
| PubMed ID | 17079480 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_410 | RNA | GGGAGAGCGGAAGCGUGCUGGGCCUGUCGUUCGCUGUGUCUUGCUACGUUACGUUACACGGUUGGCAUAACCCAGAGGUCGAUGG | |
| Apta_353 | RNA | GAAUUCCGCGUGUGCCAGCGAAAGUUGCGUAUGGGUCACAUCGCAGGCACAUGUCAUCUGGGCGGUCCGUUCGGGAUCC | |
| Apta_400 | RNA | GGGAGGACGAUGCGGAUACCAGCGAAUAACUCGCUGAGGAACCCGACUCACAAACAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_645 | RNA | CUGGACGACGGGGACGCCACUGGACUAGGUAAGCCAGGACCGUACGUCGGGAGCCGUCAGAAUA | |
| Apta_276 | RNA | GGACCGAGAAGUUACCCUGUAAUCUUAGGAUGAAUCGCAUGCUCUAGCGACCUUUUCGGCUUCGGCGUACGCACAUCGCAGCAAC | |
| Apta_376 | RNA | GGGAGCUCAGCCUUCACUGCACUCCGGCUGGUGGACGCGGUACGAGCAAUUUGUACCGGAUGGAUGUUCGGGCAGCGGUGUGGCAGGGAUGAGCGGCACCACGGUCGGAUCCAC | |
| Apta_559 | RNA | GGAUGUCCAGUCGCUUGCAAUGCCCUUUUAGACCCUGAUGAGGAUCAUCGGACUUUGUCCUGUGGAGUAAGAUCGCGAAACGGUGAAAGCCGUAGGUCU | |
| Apta_563 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGAAAGCCAAAGCCGUAGCGCAGAUGAUCUCGCCAUCAGUACCGAAACGGUAGCGAGAGCUC | |
| Apta_394 | RNA | GGGCGAAUUCAACUGCCAUCUAGGCAGUAACCAGGAGUUAGUAGGACAAGUUUCGUCC | |
| Apta_396 | RNA | GGGAGGACGAUGCGGCAGUCUGCAUCGUAGGAAUCGCCACCGUAUACUUUCCCACCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_397 | RNA | GGGAGGACGAUGCGGAUACCAGGAUCACAUCCUGAGGAACCCCGGCUCCCAACCUCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_1053 | RNA | GCCGCAAGUACGAGGGCGGCGCGCUCGACGCGGUUAGAUGAGUGUCGCCGUUUCCGAAGAUUGGCUACGCGGGG | |
| Apta_613 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGCAUGAUGCAGAAGGACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_561 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUGUGGAAACAGACGUGGCACAUGACUACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_380 | RNA | GGGAUGCUUCGGCAUCCCCGAAGCCGCUAUGGACCAGUGGCGCGGCUUCGGCCCGACGGAGUGGUACCGCUUCGGCGGUACGUAAGCUUGGG | |
| Apta_710 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACGAAACGGUAGCGAGAGCUC | |
| Apta_399 | RNA | GGGAGGACGAUGCGGCAAACCAGCUAUUUCCUGAGGUACCCCGGCUCUCCAUGGCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_467 | RNA | GGGAGGACGAUGCGGCAGUGCCCAACCGGAACAACAACCACCGGCGGCUCCUGCUCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_429 | RNA | GCAUGCAGUGUCUAUUCUCGAGUAGCGAUCGUUGAAGGGGUAUAAGGUUGGCAGAUCGCUAGCAUGCAACUGACUCGGAUAAGCA | |
| Apta_413 | RNA | GUGAGACCAGCCGAGUGGUGUCUGGCUAUUCACUGGAGCGUGGGUGGAACCCCUGCGCACUCGUUUGGCUGUCCGGGCCUUCGGGCCGGGAUUAUCUCU |
