Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 135
Aptamer sequence: GGGAGGACGAUGCGGGCCGUUGUUGUGUGCCGCCCCAGACGACUCGCCCGA
Target unique ID: P01589
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_134 | Tr-8 | Protein | IL2RA_HUMAN | 35.7 nM | HEPES-buffered saline, pH=7.5 with 2mmol/L CaCl2 | 31383650 |
Structure information of aptamer
| Aptamer Sequence: | GGGAGGACGAUGCGGGCCGUUGUUGUGUGCCGCCCCAGACGACUCGCCCGA |
| The optimal secondary structure in dot-bracket notation: | (((((..((.((.((((.((........)).))))))..)).))).))... |
| The centroid secondary structure in dot-bracket notation: | (((....((.((.((((.((........)).))))))..)).....))).. |
The MFE structure
The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_134 | Description | Tr-8 |
| Aptamer chemistry | RNA | Length | 51 nt |
| GC content | 70.6% | Molecular weight | 16,718.76 Da |
| Molarity of 1 μg/μl solution | 59.81 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Targeted binding |
| Sequence | GGGAGGACGAUGCGGGCCGUUGUUGUGUGCCGCCCCAGACGACUCGCCCGA | ||
| Applications | Determine the fraction of soluble CD25 | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Uniprot ID | P01589 | Protein name | Interleukin-2 receptor subunit alpha (IL-2 receptor subunit alpha) (IL-2-RA) (IL-2R subunit alpha) (IL2-RA) (TAC antigen) (p55) (CD antigen CD25) |
| Gene name(s) | IL2RA | Organism | Interleukin-2 receptor subunit alpha (IL-2 receptor subunit alpha) (IL-2-RA) (IL-2R subunit alpha) (IL2-RA) (TAC antigen) (p55) (CD antigen CD25) |
| Status | reviewed in uniprot database | Length | 272 |
| Mass | 30,819 | Activity regulation | N/A |
| Involvement in disease | Diabetes mellitus, insulin-dependent, 10 (IDDM10) | Catalytic activity | N/A |
| PDB ID(s) | 1Z92;2B5I;2ERJ;3IU3;3NFP;6VWU;6YIO;7F9W; |
 |
Function | Receptor for interleukin-2. The receptor is involved in the regulation of immune tolerance by controlling regulatory T cells (TREGs) activity. |
Activity data
 |
Interaction ID | 135 |
| Target type | Protein | |
| Target unique ID | P01589 | |
| Activity | 35.7 nM | |
| Binding Conditions/Buffer | HEPES-buffered saline, pH=7.5 with 2mmol/L CaCl2 |
|

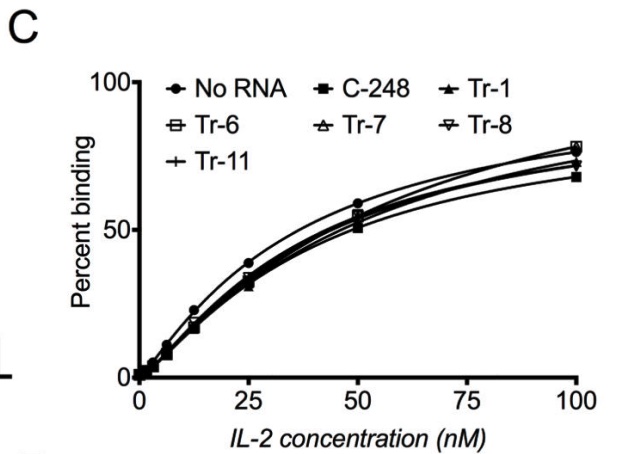

| Assay | An ELISA-based assay demonstrating the EC50 of the IL2-CD25 interaction (N=3). A representative plot from three independent sets of experiments is shown |
|
| PubMed ID | 31383650 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_131 | RNA | GGGAGGACGAUGCGGUCCUGUCGUCUGUUCGUCCCCAGACGACUCGCCCGA | |
| Apta_135 | RNA | GGGAGGACGAUGCGGAUUCUGGUUACUGGCCGCCCCAGACGACUCGCCCGA | |
| Apta_132 | RNA | GGGAGGACGAUGCGGCGUUUCCUCUGGUUCGUCCCCAGACGACUCGCCCGA | |
| Apta_133 | RNA | GGGAGGACGAUGCGGUGAGUCGUUCCCUUCGUCCCCAGACGACUCGCCCGA | |
| Apta_315 | RNA | GGGAGGACGAUGCGGUCGUAUUAUCCGCUGCACGCCAGACGACUCGCCCGA | |
| Apta_130 | RNA | GGGAGGACGAUGCGGUGGUAGCGCGAUAUAGCGCUGGUAGGGUUGCCGGUGAUCAGACGACUCGCCCGA | |
| Apta_129 | RNA | GGGAGGACGAUGCGGACACCGUUAAUCUGAGGCCCUGUCCUAUUCCUUCACGCCUCAGA | |
| Apta_352 | RNA | GGGAGGACGAUGCGGUGGUCUCCCAAUUCUAAACUUUCUCCAUCGUAUCUGGGCAGACGACUCGCCCGA | |
| Apta_984 | RNA | GGGAGGACGAUGCGGCGUAUUGCGCGAGGAUUAUCCGCUCAUCGUUGUUGUUGUGCAGACGACUCGCCCGA | |
| Apta_399 | RNA | GGGAGGACGAUGCGGCAAACCAGCUAUUUCCUGAGGUACCCCGGCUCUCCAUGGCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_703 | RNA | GGGCGGAUGAGACGCUUGGCGUGUGCUGUGGAGAGUCAUCCG | |
| Apta_396 | RNA | GGGAGGACGAUGCGGCAGUCUGCAUCGUAGGAAUCGCCACCGUAUACUUUCCCACCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_400 | RNA | GGGAGGACGAUGCGGAUACCAGCGAAUAACUCGCUGAGGAACCCGACUCACAAACAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_414 | RNA | GGGAGGACGAUGCGGCCGAUUAGAACUGGGCUGAGGCGUUCUGCAUUUCGGUGAUCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_230 | RNA | GGGAGGACGAUGCGGGCGUGAAUGGUGUUGUGAGG | |
| Apta_397 | RNA | GGGAGGACGAUGCGGAUACCAGGAUCACAUCCUGAGGAACCCCGGCUCCCAACCUCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_415 | RNA | GGGAGGACGAUGCGGAAACUCAUCGGUAGCCUUCCUGCGGUCAGUCUAUUAGGACCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_305 | RNA | GGGAGGACGAUGCGGAUCGCCCUGAACCGGCCCAGCAGACUGCUGACGGCACGAUCCGCAUCGUCCUCCC | |
| Apta_172 | RNA | GGAGACAUCCCUCUUGUUGGUGGUGCCGUGUGGAUGUCUC | |
| Apta_793 | RNA | GGGAGAGAACAAUGACCUGCGGUGCCAAGCCGUCGGGUUAUGUUGAUCUCCUCAAGGACGAGUGCAUUGCAUCACGUCAGUAG |
