Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 305
Aptamer sequence: AUACCAGCUUAUUCAAUUGCCUGAAAACCUGGUCUCUCUGUCAGCAAAGACUAUGTUGAGAUAGUAAGUGCAAUCU
Target unique ID: P10696
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_296 | SQ-3 | Protein | PPBN_HUMAN | 60.64 nM | 4.5 g/L glucose, 5 mmol/L MgCl2, 0.1 mg/mL yeast tRNA, and 1 mg/mL bovine serum albumin (BSA) in Dulbecco's PBS | 23467613 |
Structure information of aptamer
| Aptamer Sequence: | AUACCAGCUUAUUCAAUUGCCUGAAAACCUGGUCUCUCUGUCAGCAAAGACUAUGTUGAGAUAGUAAGUGCAAUCU |
| The optimal secondary structure in dot-bracket notation: | ..(((((.((.((((......)))))).)))))..........(((...(((((......)))))...)))..... |
| The centroid secondary structure in dot-bracket notation: | ..(((((.((.((((......)))))).)))))..........(((...(((((......)))))...)))..... |

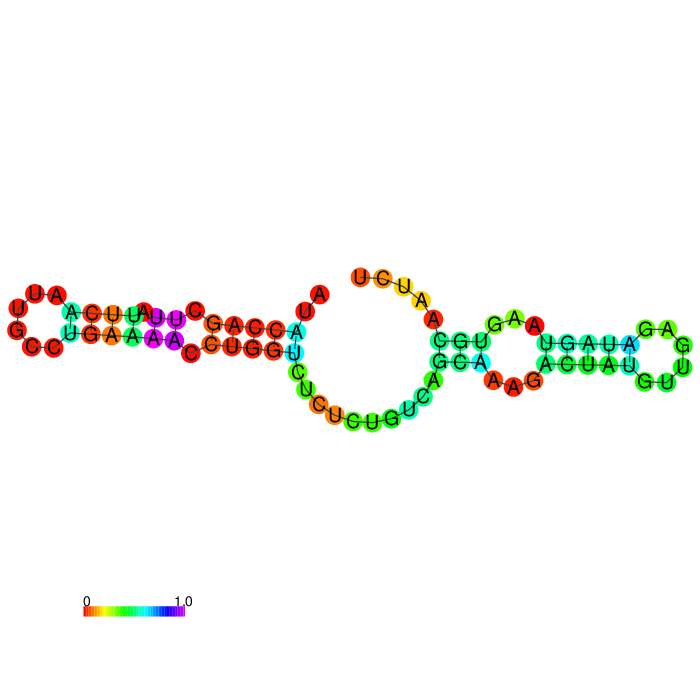

The MFE structure
The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_296 | Description | SQ-3 |
| Aptamer chemistry | RNA | Length | 76 nt |
| GC content | 39.5% | Molecular weight | 24,507.31 Da |
| Molarity of 1 μg/μl solution | 40.80 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Targeted binding |
| Sequence | AUACCAGCUUAUUCAAUUGCCUGAAAACCUGGUCUCUCUGUCAGCAAAGACUAUGTUGAGAUAGUAAGUGCAAUCU | ||
| Applications | The aptamer-mediated identification of ALPPL-2 on the cell surface and cell secretions of pancreatic cancer cells supports its potential use in the serum and membrane-based diagnosis of PDAC | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Uniprot ID | P10696 | Protein name | Alkaline phosphatase, germ cell type (EC 3.1.3.1) (ALP-1) (Alkaline phosphatase Nagao isozyme) (Alkaline phosphatase, placental-like) (Germ cell alkaline phosphatase) (GCAP) (Placental alkaline phosphatase-like) (PLAP-like) |
| Gene name(s) | ALPG ALPPL ALPPL2 | Organism | Alkaline phosphatase, germ cell type (EC 3.1.3.1) (ALP-1) (Alkaline phosphatase Nagao isozyme) (Alkaline phosphatase, placental-like) (Germ cell alkaline phosphatase) (GCAP) (Placental alkaline phosphatase-like) (PLAP-like) |
| Status | reviewed in uniprot database | Length | 532 |
| Mass | 57,377 | Activity regulation | Inhibited by L-leucine, EDTA and heat |
| Involvement in disease | N/A | Catalytic activity | Reaction=a phosphate monoester + H2O = an alcohol + phosphate |
| PDB ID(s) | N/A |
 |
Function | Alkaline phosphatase that can hydrolyze various phosphate compounds. |
Activity data
|
No relevant experimental diagram |
Interaction ID | 305 |
| Target type | Protein | |
| Target unique ID | P10696 | |
| Activity | 60.64 nM | |
| Binding Conditions/Buffer | 4.5 g/L glucose, 5 mmol/L MgCl2, 0.1 mg/mL yeast tRNA, and 1 mg/mL bovine serum albumin (BSA) in Dulbecco's PBS |
|
| Assay | N/A |
|
| PubMed ID | 23467613 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_299 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAGACUGGAUAUACUCUUAAGCAUUUCUAUAAUCGAGAUAGUAAGUGCAAUCU | |
| Apta_298 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAAACUGGUGUACCUCUUUGCCCUAUCUUAUCUGGAGAUAGUAAGUGCAAUCU | |
| Apta_295 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAAAGCUAUCGCCCAAUUCGCAGUGAUAUCCUUUAAGAUAGUAAGUGCAAUCU | |
| Apta_297 | RNA | AUACCAGCUUAUUCAAUUGCCUGAGUAGCUGGGUCCGUCCCCACACAUUACCAUUUGUAGAUAGUAAGUGCAAUCU | |
| Apta_300 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAACUGCUGCAUCGUCUCCCACGUAUUACACAUGAAGAUAGUAAGUGCAAUCU | |
| Apta_301 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAAAGUUGAACUCCAAAUACGCGCUGAGAUAGUAAGUGCAAUCU | |
| Apta_294 | RNA | AUACCAGCUUAUUCAAUUGCCUGAUUAGCGGUAUCACGAUUACUUACCUUCGUUGCUGAGAUAGUAAGUGCAAUCU | |
| Apta_494 | RNA | GGGAGAUACCAGCUUAUUCAAUUCUGGCAAUGGGCUAUCCCAAGUGCUAGGCUUCAGGGAGCGAGGACCAGACGACGUACCUAACCCUAAGGUGAGAUAGUAAGUGCAAUCU | |
| Apta_561 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUGUGGAAACAGACGUGGCACAUGACUACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_874 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACAGAAGGACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_426 | RNA | UGCCGCUAUAAUGCACGGAUUUAAUCGCCGUAGAAAAGCAUGUCAAAGCCG | |
| Apta_447 | RNA | ACGCUCAACGAGCCAGGAACAUCGACGUCAGCAAACGCGAGCGCAACCAGUAACACC | |
| Apta_1249 | RNA | AAUCGGCCCAAUUUUACCUUCGGACUUCAGUAUCUAGUGUGGCUUUAAAUCAUAGC | |
| Apta_613 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGCAUGAUGCAGAAGGACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_562 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUUAGGGCCAAGUGUGGUGAAAGACACACUCGAAACGGUAGCGAGAGCUC | |
| Apta_710 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACGAAACGGUAGCGAGAGCUC | |
| Apta_549 | RNA | GGAGCUCAGCCUUCACUGCAUGAUAAACCGAUGCUGGGCGAUUCUCCUGAAGUAGGGGAAGAGUUGUCAUGUAUGGGGGCACCACGGUCGGAUCCUG | |
| Apta_551 | RNA | GGAUGUCCAGUCGCUUGCAAUGCCCUUUUAGACCCUGAUGAGCGGUGCUAGUUAGUUGCAGUUUCGGUUGUUACGCGAAACGGUGAAAGCCGUAGGUCU | |
| Apta_559 | RNA | GGAUGUCCAGUCGCUUGCAAUGCCCUUUUAGACCCUGAUGAGGAUCAUCGGACUUUGUCCUGUGGAGUAAGAUCGCGAAACGGUGAAAGCCGUAGGUCU | |
| Apta_893 | RNA | ACCGAGUCCAGAAGCUUGUAGUACUUAUGUCCCAUCGAACGCAGUGUAUCUUGCACCGACUCUCUGCCUAGAUGGAGUUGAAUUCUCCCUAUAGUGAGUCGUAUUAC |
