Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 1286
Aptamer sequence: GGAGGCGCCAACUGAAUGAAUGUUCUGGAUCUGCUAGAGACUAUCUGCUUCGGCAGCACUCUCCGUUAACAACACGUACAUCCGUAACUAGUCGCGUCAC
Target unique ID: 135435090
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_1224 | JX4 | Molecule | 9H-Purin-6-ol, 2-((phenylmethyl)amino)- | 2705.2 nM | 500 µL 1 M Tris-HCl, pH 7.4 | 26538152 |
Structure information of aptamer
| Aptamer Sequence: | GGAGGCGCCAACUGAAUGAAUGUUCUGGAUCUGCUAGAGACUAUCUGCUUCGGCAGCACUCUCCGUUAACAACACGUACAUCCGUAACUAGUCGCGUCAC |
| The optimal secondary structure in dot-bracket notation: | ...(((((..((((.......(((.(((((.(((..((((....((((....))))...)))).(((...)))..))).))))).))))))).))))).. |
| The centroid secondary structure in dot-bracket notation: | ...(((((..((((.......(((.(((((.(((..((((....((((....))))...))))............))).))))).))))))).))))).. |

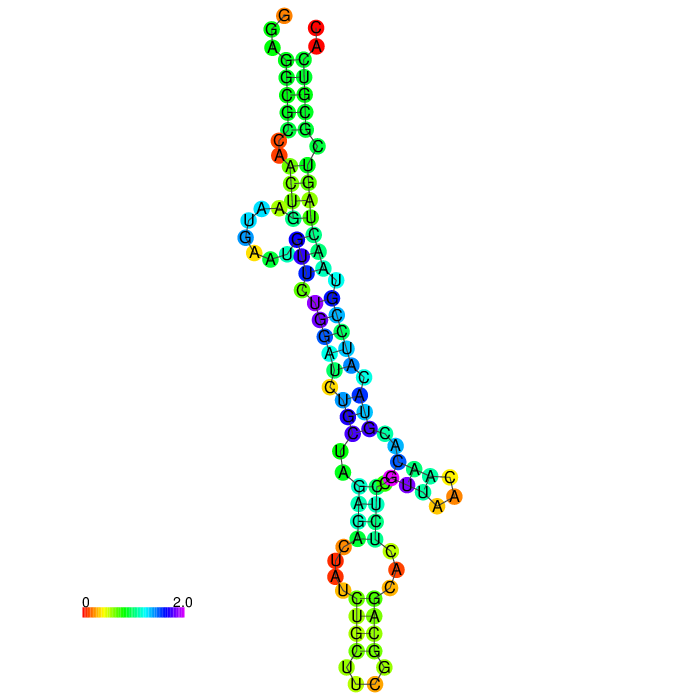

The MFE structure

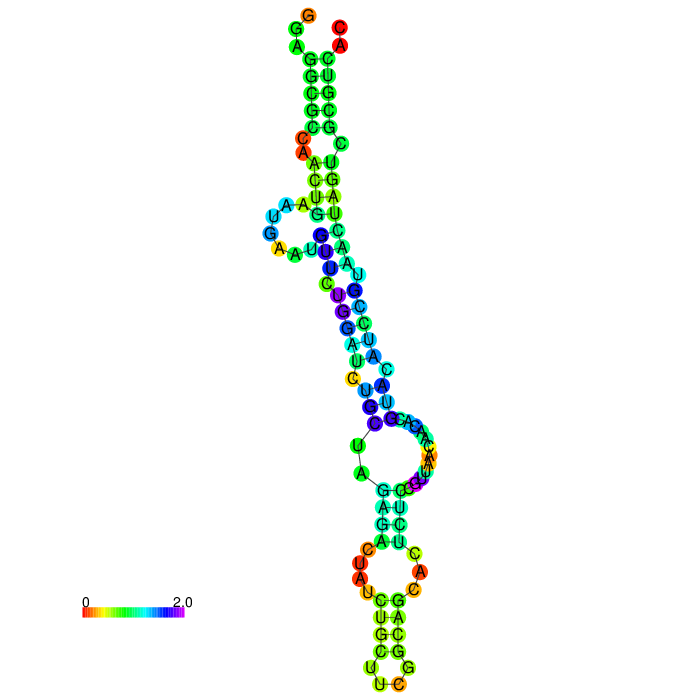

The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_1224 | Description | JX4 |
| Aptamer chemistry | RNA | Length | 100 nt |
| GC content | 51.0% | Molecular weight | 32,000.97 Da |
| Molarity of 1 μg/μl solution | 31.25 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Target detection |
| Sequence | GGAGGCGCCAACUGAAUGAAUGUUCUGGAUCUGCUAGAGACUAUCUGCUUCGGCAGCACUCUCCGUUAACAACACGUACAUCCGUAACUAGUCGCGUCAC | ||
| Applications | Detection of benzylguanine | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| PubChem ID | 135435090 | Molecular name | 9H-Purin-6-ol, 2-((phenylmethyl)amino)- |
| Molecular formula | C12H11N5O | Molecular weight | 241.25 |
| IUPAC name | 2-(benzylamino)-1,7-dihydropurin-6-one | InChIKey | XWNJMSJGJFSGRY-UHFFFAOYSA-N |
| LogP | 1.258 | Topological polar surface area | 86.46 |
| Hydrogen bond acceptor | 4 | Hydrogen bond donor | 3 |
Synonym(s): 5711-37-5; 2-(benzylamino)-9H-purin-6-ol; 9H-Purin-6-ol, 2-((phenylmethyl)amino)-; CHEMBL292057; 9H-Purin-6-ol, 2-[(phenylmethyl)amino]-; benzylguanine; n2-benzylguanine; benzylaminopurine hydroxide; SCHEMBL18251; 2-Benzylamino-9H-purin-6-ol; SCHEMBL16146131; DTXSID40205734; BDBM50013090; ZINC26161976; 6H-Purin-6-one,1,9-dihydro-2-[(phenylmethyl)amino]-
Activity data
 |
Interaction ID | 1286 |
| Target type | Molecule | |
| Target unique ID | 135435090 | |
| Activity | 2705.2 nM | |
| Binding Conditions/Buffer | 500 µL 1 M Tris-HCl, pH 7.4 |
|

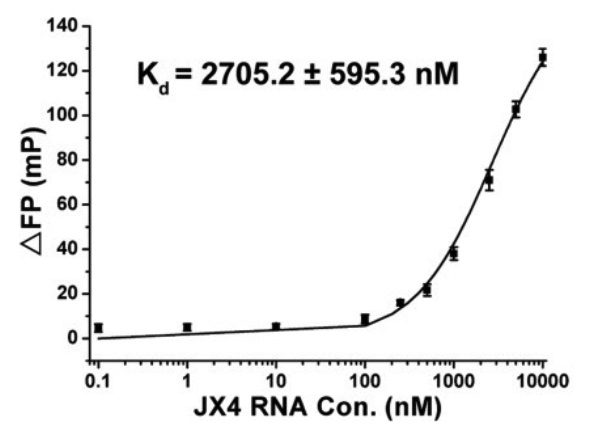

| Assay | Binding affinity of the JX1-6 aptamers for Atto488-bG as measured by FP |
|
| PubMed ID | 26538152 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_1226 | RNA | GGAGGCGCCAACUGAAUGAAGGUGUAUUUCAGUUAAAGAACUUGCUGCUUCGGCAGCGUUCUGAGUUACUAGUCCAAUAAUCCGUAACUAGUCGCGUCAC | |
| Apta_1225 | RNA | GGAGGCGCCAACUGAAUGAAAGAGGUAACGAAAGAUGAUUGUGCCUGCUUCGGCAGUACAACUUCUCGGAUAAAUGAUUAUCCGUAACUAGUCGCGUCAC | |
| Apta_1221 | RNA | GGAGGCGCCAACUGAAUGAACGAGUUGAAAUGCGGAUCAAGUUACUGCUUCGGCAGUACCUAGUGGGAAAAGUUCUUGGGUCCGUAACUAGUCGCGUCAC | |
| Apta_1222 | RNA | GGAGGCGCCAACUGAAUGAAACCGUGCUAAGGAGUUGGACUCCGCUGCUUCGGCAGAGCGAUAUAGUGCCAGCUGAUACAUCCGUAACUAGUCGCGUCAC | |
| Apta_1223 | RNA | GGAGGCGCCAACUGAAUGAAAGGUUACGCUUCAACGCCGUGCAGCUGCUUCGGCAGGCUUGUGAGUACAUGGCCCAUUGAUCCGUAACUAGUCGCGUCAC | |
| Apta_612 | RNA | GGGCGACCCUGAUGAGCCUUAGGAUAUGCUUCGGCAGAAGGACGUCGAAACGGUGAAAGCCGUAGGUUGCCC | |
| Apta_396 | RNA | GGGAGGACGAUGCGGCAGUCUGCAUCGUAGGAAUCGCCACCGUAUACUUUCCCACCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_793 | RNA | GGGAGAGAACAAUGACCUGCGGUGCCAAGCCGUCGGGUUAUGUUGAUCUCCUCAAGGACGAGUGCAUUGCAUCACGUCAGUAG | |
| Apta_305 | RNA | GGGAGGACGAUGCGGAUCGCCCUGAACCGGCCCAGCAGACUGCUGACGGCACGAUCCGCAUCGUCCUCCC | |
| Apta_723 | RNA | GGGAGCUCAGAAUAAACGCUCAAAUCCGUGGACAGGGCGUAAGCGCCUUCGACAUGAGACACGGAUCCUGCGACGAAUUCAGC | |
| Apta_494 | RNA | GGGAGAUACCAGCUUAUUCAAUUCUGGCAAUGGGCUAUCCCAAGUGCUAGGCUUCAGGGAGCGAGGACCAGACGACGUACCUAACCCUAAGGUGAGAUAGUAAGUGCAAUCU | |
| Apta_300 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAACUGCUGCAUCGUCUCCCACGUAUUACACAUGAAGAUAGUAAGUGCAAUCU | |
| Apta_383 | RNA | GGCGUGACCUGAUGAGUCACGCUAAGGAGGAUUUCCGAAAGCGGCUACGGUCCGCCAGUGUUACGAAACGUUCCC | |
| Apta_398 | RNA | GGGAGGACGAUGCGGCUUUAAUCCUCGCACUCAGCGCGCAUCACCCUUGACAUCACAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_415 | RNA | GGGAGGACGAUGCGGAAACUCAUCGGUAGCCUUCCUGCGGUCAGUCUAUUAGGACCAGACGACUCGCUGAGGAUCCGAGA | |
| Apta_432 | RNA | GGGAGACAAGAAUAAACGCUCAAGGCAUUUCUGCUAGUCUGGUUGUAAGAUAUUCAACACGUGAGUUUCGACAGGAGGCUCACAACAGGC | |
| Apta_460 | RNA | GGAUGGCAGCGGAGAGUUGCUUGGAAUGCGUUAUAGUCUCUUAGGUGUGUACAGCCCACACCACUCUCC | |
| Apta_547 | RNA | GGGAGAAGGCGGCGCGUAGGCGAGCUUUAGGCCCGACAUUCCCCUAAAAAAGCUUGUUCUAUUCGUGGACGAUGCGCAC | |
| Apta_224 | RNA | GGGGCCACCAACGACAUUGAACCACGUAGGCUCGUUUCUGAGCCGAUCUCGAUGUUGAUAUAAAUAGUGCCCAUGGAUC | |
| Apta_225 | RNA | GGGGCCACCAACGACAUUUAUCGAAUUGAUAACCUUACGCGAGAGCGUAGUUCGUUGAUAUAAAUAGUGCCCAUGGAUC |
