Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 902
Aptamer sequence: GGGUUCACUGCAGACUUGACGAAGCUUGAGAGAUGCCCCCUGAUGUGCAUUCUUGUUGUGUUGCGGCAAUGGAUCCACAUCUACGAAUUC
Target unique ID: 13076
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_816 | S25 | Cell | Salmonella Enteritidis | N/A | 0.5 M NaCl, 10 mM Tris-HCl, pH 7.5-7.6 and 1 mM MgCl2 with 0.1% Triton X 100 | 22310030 |
Structure information of aptamer
| Aptamer Sequence: | GGGUUCACUGCAGACUUGACGAAGCUUGAGAGAUGCCCCCUGAUGUGCAUUCUUGUUGUGUUGCGGCAAUGGAUCCACAUCUACGAAUUC |
| The optimal secondary structure in dot-bracket notation: | ((((((.((..((.(((....)))))..)).)).))))...((((((.(((((((((((...))))))).)))).))))))......... |
| The centroid secondary structure in dot-bracket notation: | ((((((.((..((.(((....)))))..)).)).))))...((((((.(((((((((((...))))))).)))).))))))......... |
The MFE structure
The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_816 | Description | S25 |
| Aptamer chemistry | RNA | Length | 90 nt |
| GC content | 50.0% | Molecular weight | 28,847.01 Da |
| Molarity of 1 μg/μl solution | 34.67 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Target detection |
| Sequence | GGGUUCACUGCAGACUUGACGAAGCUUGAGAGAUGCCCCCUGAUGUGCAUUCUUGUUGUGUUGCGGCAAUGGAUCCACAUCUACGAAUUC | ||
| Applications | Detection of Salmonella Enteritidis | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| ATCC ID | 13076 | Cell name | Salmonella Enteritidis |
| Category | Bacteria | Organism | N/A |
| Product type | Preceptrol culture | Cell type | N/A |
| Morphology | N/A | Tissue | N/A |
| Disease | N/A | Product format | Freeze-dried |
| Antigen expression | N/A | Genes expressed | N/A |
| Cell description | Formerly Salmonella choleraesuis subsp. choleraesuis serovar Enteritidis. Type strain of Salmonella enteritidis. |
|
|
| Application(s) | Enteric disease research; Infectious disease research; Media testing; Zoonotic disease research | ||
Activity data
 |
Interaction ID | 902 |
| Target type | Cell | |
| Target unique ID | 13076 | |
| Activity | N/A | |
| Binding Conditions/Buffer | 0.5 M NaCl, 10 mM Tris-HCl, pH 7.5-7.6 and 1 mM MgCl2 with 0.1% Triton X 100 |
|

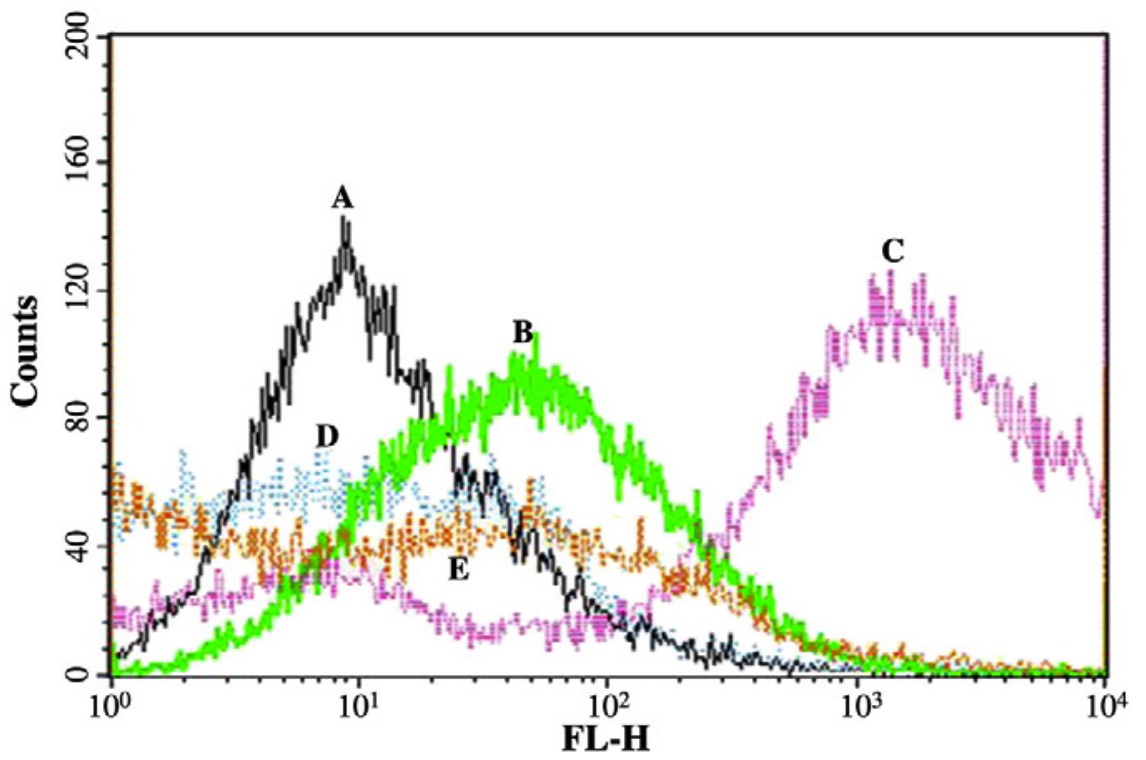

| Assay | The binding capacity of the aptamer S25 (conc. 5 μg and 30 μg) to Salmonella Enteritidis was determined by flow cytometry |
|
| PubMed ID | 22310030 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_157 | RNA | GGGUUCACUGCAGACUUGACGAAGCUUACAAACAAGAGCAAAAAGGGAGUUGACGUAGACUGUGCGGAAUGGAUCCACAUCUACGAAUUC | |
| Apta_280 | RNA | GAUAAUACGACUCACUAUAGGGUUCACUGCAGACUUGACGAAGCUUGCAGAAAAGGGGGAAGAAGAGGGUGAUUCAGGCGAGAGAAUGGAUCCACAUCUACGAAUUC | |
| Apta_719 | RNA | GGAAUGGAUCCACAUCUACGAAGGCUUUGAAGGUGAGACCGUGCAAAUGAGGAUGGUGUGGAUGAUUAGGGUUGUCGGUUUUCACUGCAGACUUGACGAAGCUU | |
| Apta_460 | RNA | GGAUGGCAGCGGAGAGUUGCUUGGAAUGCGUUAUAGUCUCUUAGGUGUGUACAGCCCACACCACUCUCC | |
| Apta_766 | RNA | GGUUACCAGCCUUCACUGCGGACGGACAGAGAGUGCAACCUGCCGUGCCGCACCACGGUCGGUCACAC | |
| Apta_137 | RNA | GGGAGACAAGAAUAAACGCUCAAGUGACGUCCUGAUCGAUUGUGCAUUCGGUGUGACGAUCUUUCGACAGGAGGCUCACAACAGGC | |
| Apta_613 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGCAUGAUGCAGAAGGACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_874 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACAGAAGGACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_453 | RNA | GGGCUAGCUGAUCGUACCAGUAGCGUGGCCUGGGGGGCCUAGUCGUGCGAUACUAACAGCUAACACCC | |
| Apta_496 | RNA | GGGCUAGCUGAUCGUACCCAGUAGCGUGGCAUGGGGUGCCUAGUCGGGCGAUACUAACAGCUAACACCC | |
| Apta_576 | RNA | GGCACCAAAGCUGAAGUAGCGGGAUAACUCAAAUUACUUUAGGUGUAUGAAGGUGAAACUAGCAAUGAA | |
| Apta_624 | RNA | GGGAAUGGAUCCACAUCUACGAAUUCGAAUUGCCGUAAUUUCCCGUGGAGCGAUGCUUCACUGCAGACUUGACGAAGCUU | |
| Apta_1223 | RNA | GGAGGCGCCAACUGAAUGAAAGGUUACGCUUCAACGCCGUGCAGCUGCUUCGGCAGGCUUGUGAGUACAUGGCCCAUUGAUCCGUAACUAGUCGCGUCAC | |
| Apta_549 | RNA | GGAGCUCAGCCUUCACUGCAUGAUAAACCGAUGCUGGGCGAUUCUCCUGAAGUAGGGGAAGAGUUGUCAUGUAUGGGGGCACCACGGUCGGAUCCUG | |
| Apta_551 | RNA | GGAUGUCCAGUCGCUUGCAAUGCCCUUUUAGACCCUGAUGAGCGGUGCUAGUUAGUUGCAGUUUCGGUUGUUACGCGAAACGGUGAAAGCCGUAGGUCU | |
| Apta_224 | RNA | GGGGCCACCAACGACAUUGAACCACGUAGGCUCGUUUCUGAGCCGAUCUCGAUGUUGAUAUAAAUAGUGCCCAUGGAUC | |
| Apta_225 | RNA | GGGGCCACCAACGACAUUUAUCGAAUUGAUAACCUUACGCGAGAGCGUAGUUCGUUGAUAUAAAUAGUGCCCAUGGAUC | |
| Apta_256 | RNA | GGGCGCUAAGUCCUCGCUCAUGCGCGUCCCAUGGGGUAUAGAGGGGUCGAAGUGGACGCGCGACUCGGAUCCU | |
| Apta_276 | RNA | GGACCGAGAAGUUACCCUGUAAUCUUAGGAUGAAUCGCAUGCUCUAGCGACCUUUUCGGCUUCGGCGUACGCACAUCGCAGCAAC | |
| Apta_566 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCCUGCGAUGCAGAAAGGUGCUGACGACACAUCGAAACGGUAGCGAGAGCUC |
