Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 762
Aptamer sequence: AUUGGAUCGGUAGUAUAGGUGAGACACUUCAUGCCUUUGUUGCAGGCUGGGGUGAAGGCGCUACAUGGCGUCUGAAA
Target unique ID: 6140
Aptamer ID Aptamer descriptor Target chemistry Target name Affinity Binding Conditions/Buffer PubMed ID
Apta_695 523 Molecule Phenylalanine 0.12 mM 50 mM Hepes (pH 7.0), 0.3 M NaCl, 5 mM CaCl2, and 5 mM MgCl2 11847556
Structure information of aptamer
Aptamer Sequence: AUUGGAUCGGUAGUAUAGGUGAGACACUUCAUGCCUUUGUUGCAGGCUGGGGUGAAGGCGCUACAUGGCGUCUGAAA
The optimal secondary structure in dot-bracket notation: ........................(((((((.((((.......))))))))))).(((((((....)))))))....
The centroid secondary structure in dot-bracket notation: ........................(((((((.((((.......))))))))))).(((((((....)))))))....
The MFE structure

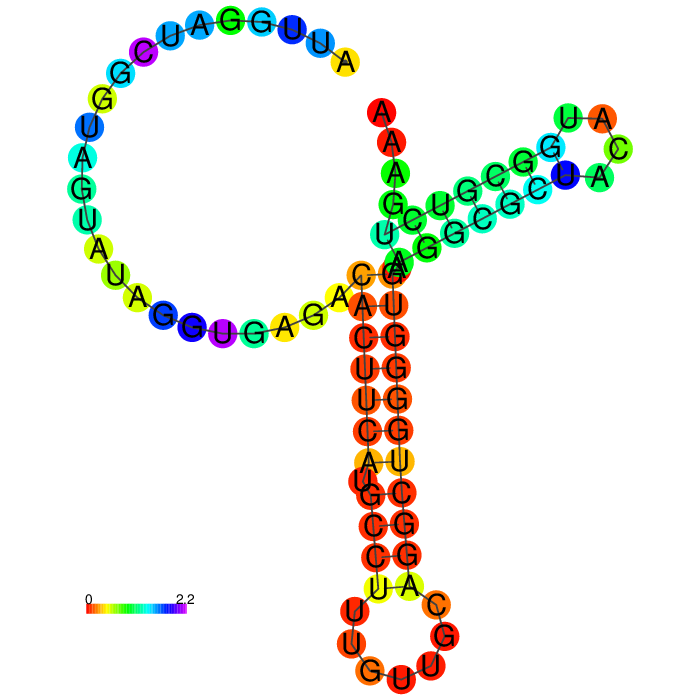

The Centroid structure
The mountain plot representation
Aptamer information
Type Detail Type Detail
Aptamer ID Apta_695 Description 523
Aptamer chemistry RNA Length 77 nt
GC content 50.6% Molecular weight 24,906.73 Da
Molarity of 1 μg/μl solution 40.15 μM Number of G-quadruplexes 2
G-Score 18 Function Aptasensor
Sequence AUUGGAUCGGUAGUAUAGGUGAGACACUUCAUGCCUUUGUUGCAGGCUGGGGUGAAGGCGCUACAUGGCGUCUGAAA
Applications Determination of phenylalanine
Target information
Type Detail Type Detail
PubChem ID 6140 Molecular name Phenylalanine
Molecular formula C9H11NO2 Molecular weight 165.19
IUPAC name (2S)-2-amino-3-phenylpropanoic acid InChIKey COLNVLDHVKWLRT-QMMMGPOBSA-N
LogP 0.641 Topological polar surface area 63.32
Hydrogen bond acceptor 2 Hydrogen bond donor 2

Synonym(s):
L-phenylalanine; phenylalanine; 63-91-2; (S)-2-Amino-3-phenylpropanoic acid; 3-Phenyl-L-alanine; (2S)-2-amino-3-phenylpropanoic acid; (S)-Phenylalanine; (S)-2-Amino-3-phenylpropionic acid; beta-Phenyl-L-alanine; (L)-Phenylalanine; 3-Phenylalanine; H-Phe-OH; Antibiotic FN 1636; L-Alanine, phenyl-; Alanine, 3-phenyl-; L-Antibiotic FN 1636; (S)-alpha-Amino-beta-phenylpropionic acid; L-Alanine, 3-phenyl-; Phenylalanine (VAN); Fenilalanina [Spanish]; Phenylalaninum [Latin]; (S)-alpha-Aminohydrocinnamic acid; Alanine, phenyl-, L-; (S)-(-)-Phenylalanine; beta-Phenylalnine, (-)-; (S)-alpha-Amino-benzenepropanoic acid; FEMA No. 3585; Phenylalanine, L-; Hydrocinnamic acid, alpha-amino-; 2-Amino-3-phenylpropionic acid, L-; Phenylalanine [USAN:INN:JAN]; HSDB 1825; alpha-Aminohydrocinnamic acid, L-; alpha-Amino-beta-phenylpropionic acid, L-; Benzenepropanoic acid, alpha-amino-, (S)-; fenilalanina; alpha-Aminohydrocinnamic acid; endophenyl; NSC 79477; L-Phe; UNII-47E5O17Y3R; L-PHENYLALININE; MFCD00064227; 67675-33-6; CHEMBL301523; CHEBI:17295; L-2-Amino-3-phenylpropionic acid; phe; 47E5O17Y3R; Phenylalaninum; phenylalanin; Phenylalamine; Phenylalanine (L-Phenylalanine); Alanine, phenyl-; .beta.-Phenylalanine; Phenyl-.alpha.-alanine; L-.beta.-Phenylalanine; .beta.-Phenyl-L-alanine; (-)-.beta.-Phenylalanine; EINECS 200-568-1; .alpha.-Aminohydrocinnamic acid; .beta.-Phenyl-.alpha.-alanine; Phenylalanine (USP/INN); L-phenylaniline; Hydrocinnamic acid, .alpha.-amino-; NSC-9959; CCRIS 4254; .beta.-Phenyl-.alpha.-alanine, l-; NSC-79477; L-phenyl Alanine; PheOH; 1usi; NCI9959; (-)-phenylalanine; .alpha.-Amino-.beta.-phenylpropionic acid; racemic phenylalanine; Phenylalanine [USAN:USP:INN:JAN]; 1f2p; alpha-Aminohydrocinnamate; (-)-beta-Phenylalanine; L-Phenylalanine, 99%; beta-Phenyl-alpha-alanine; L-Phenylalanine (JP17); bmse000045; bmse000900; bmse000921; bmse001016; SCHEMBL8119; NCIStruc1_000204; NCIStruc2_000248; H-Phe-2-Chlorotrityl Resin; L-(-)-PHENYLALANINE; (S)-alpha-Aminohydrocinnamate; L-Phenylalanine (H-Phe-OH); L-2-Amino-3-phenylpropionate; L-Phenylalanine, 99%, FCC; GTPL3313; (S)-alpha-Aminobenzenepropanoate; 3-Amino-4-phenyl-butanoic acid; DTXSID4040763; (S)-2-amino-3-phenylpropanoate; BDBM18073; (S)-2-Amino-3-phenylpropionate; 1F9436B3-8B0D-4AC6-A004-4249B0BDA436; L-Phenylalanine non-animal source; (S)-alpha-Amino-benzenepropanoate; ZINC105196; HY-N0215; L-2-amino-3-phenyl-propionic acid; (S)-alpha-Aminobenzenepropanoic acid; AC8117; CCG-37572; NCGC00013103; L-[2,3,4,5,6-3H]phenylalanine; (S)-alpha-Amino-beta-phenylpropionate; AKOS010373257; AKOS015853585; L-Phenylalanine, Cell Culture Reagent; (S)-.alpha.-Aminobenzenepropanoic acid; DB00120; L-Phenylalanine, Vetec(TM), 98.5%; MCULE-5960921520; L-Phenylalanine, reagent grade, >=98%; NCGC00013103-02; NCGC00013103-03; NCGC00013103-04; NCGC00013103-05; NCGC00095047-01; NCGC00095047-02; NCGC00095047-03; NCGC00095047-04; AC-22417; AS-14129; BP-20538; K018; AB0013977; DB-029978; L-Phenylalanine, 99%, natural, FCC, FG; AM20060774; P0134; Benzenepropanoic acid, .alpha.-amino-, (S)-; L-Phenylalanine, BioUltra, >=99.0% (NT); 63P912; A20654; C00079; D00021; M02961; 34149-EP2289892A1; 34149-EP2301939A1; 34149-EP2305688A1; 34149-EP2305825A1; 34149-EP2311850A1; L-Phenylalanine, SAJ special grade, >=99.0%; 125851-EP2284178A2; 125851-EP2284179A2; 125851-EP2295422A2; Q170545; L-Phenylalanine, Vetec(TM) reagent grade, >=98%; Q-201326; F0001-2360; Z1258578341; L-Phenylalanine, certified reference material, TraceCERT(R); UNII-0O72R8RF8A component COLNVLDHVKWLRT-QMMMGPOBSA-N; UNII-8P946UF12S component COLNVLDHVKWLRT-QMMMGPOBSA-N; UNII-N7U7BXP2OI component COLNVLDHVKWLRT-QMMMGPOBSA-N; Phenylalanine, European Pharmacopoeia (EP) Reference Standard; 3-(2-AMINOETHYL)-1,3-THIAZOLIDINE-2,4-DIONEHYDROCHLORIDE; L-Phenylalanine, United States Pharmacopeia (USP) Reference Standard; L(-)-phenylalanine; Beta-phenylalanine;Dl-2-amino-3-phenylpropanoic acid;; L-Phenylalanine, analytical standard, for Nitrogen Determination According to Kjeldahl Method; L-Phenylalanine, Pharmaceutical Secondary Standard; Certified Reference Material; L-Phenylalanine, from non-animal source, meets EP, JP, USP testing specifications, suitable for cell culture, 98.5-101.0%; L-Phenylalanine, PharmaGrade, Ajinomoto, EP, JP, USP, manufactured under appropriate GMP controls for Pharma or Biopharmaceutical production, suitable for cell culture

Activity data
Interaction ID 762
Target type Molecule
Target unique ID 6140
Activity 0.12 mM
Binding Conditions/Buffer

50 mM Hepes (pH 7.0), 0.3 M NaCl, 5 mM CaCl2, and 5 mM MgCl2

Assay

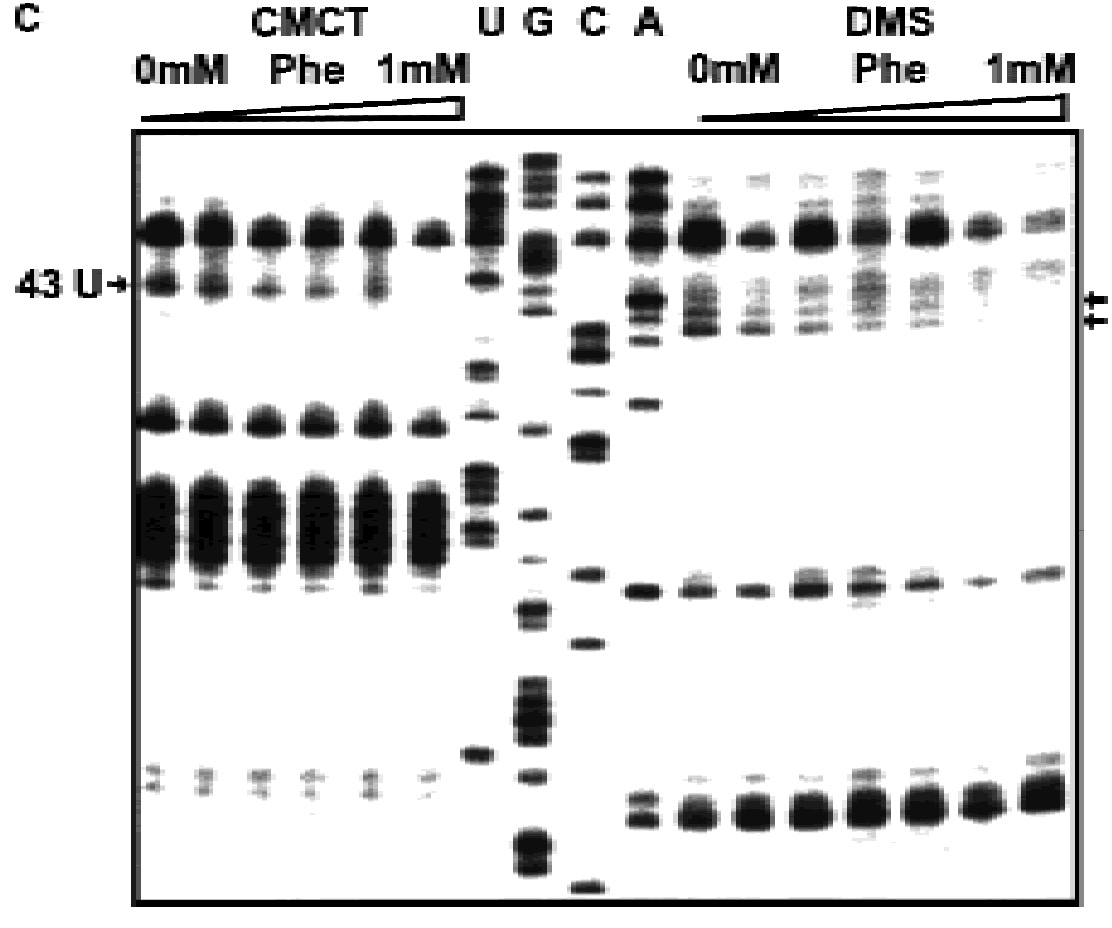

DMS protection data in the region of A47, RNA 523

PubMed ID 11847556
Similar aptamers
Aptamer ID Aptamer chemistry Sequence Similarity
Apta_720 RNA GGGAGAAUUCCGACCAGAAGCUUAGUAUAGCGAGGUUUAGCUACACUCGUGCUGAUCGUUUGGUACGGGACCUGCGUGUAGCCCAUAUGUGCGUCUACAUGGAUCCUCA 54.13%
Apta_576 RNA GGCACCAAAGCUGAAGUAGCGGGAUAACUCAAAUUACUUUAGGUGUAUGAAGGUGAAACUAGCAAUGAA 51.95%
Apta_1144 RNA ACGAGUCUGGUCCUUCCUCCCUAAUUGCUGUUGAGGUAUCGGCUACAACAA 51.95%
Apta_574 RNA AUGAAAAGGGCUGGCGAGACAUAUCCGCUGGGCAAUCAGAUUCGGAGCCGCACCACCCUCGAAGUAGACA 50.65%
Apta_1124 RNA GGGCGAAUUCGGGUUGGAUAGUAGGCGCAUAUGGCAUCUUCGUGGUUGUGUAUUGCCCUUUAGUGAGGGUUAAUU 50.65%
Apta_1168 RNA GCGACUACGGUGAGGGUCGGGUCCAGUAGCUUCGGCUACUGUUGAGUAGAGUGUGGGCUCCGUAGUCGC 50.65%
Apta_551 RNA GGAUGUCCAGUCGCUUGCAAUGCCCUUUUAGACCCUGAUGAGCGGUGCUAGUUAGUUGCAGUUUCGGUUGUUACGCGAAACGGUGAAAGCCGUAGGUCU 50.51%
Apta_415 RNA GGGAGGACGAUGCGGAAACUCAUCGGUAGCCUUCCUGCGGUCAGUCUAUUAGGACCAGACGACUCGCUGAGGAUCCGAGA 50.00%
Apta_562 RNA GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUUAGGGCCAAGUGUGGUGAAAGACACACUCGAAACGGUAGCGAGAGCUC 50.00%
Apta_613 RNA GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGCAUGAUGCAGAAGGACGUCGAAACGGUAGCGAGAGCUC 50.00%
Apta_719 RNA GGAAUGGAUCCACAUCUACGAAGGCUUUGAAGGUGAGACCGUGCAAAUGAGGAUGGUGUGGAUGAUUAGGGUUGUCGGUUUUCACUGCAGACUUGACGAAGCUU 50.00%
Apta_1223 RNA GGAGGCGCCAACUGAAUGAAAGGUUACGCUUCAACGCCGUGCAGCUGCUUCGGCAGGCUUGUGAGUACAUGGCCCAUUGAUCCGUAACUAGUCGCGUCAC 50.00%
Apta_280 RNA GAUAAUACGACUCACUAUAGGGUUCACUGCAGACUUGACGAAGCUUGCAGAAAAGGGGGAAGAAGAGGGUGAUUCAGGCGAGAGAAUGGAUCCACAUCUACGAAUUC 49.53%
Apta_893 RNA ACCGAGUCCAGAAGCUUGUAGUACUUAUGUCCCAUCGAACGCAGUGUAUCUUGCACCGACUCUCUGCCUAGAUGGAGUUGAAUUCUCCCUAUAGUGAGUCGUAUUAC 49.53%
Apta_276 RNA GGACCGAGAAGUUACCCUGUAAUCUUAGGAUGAAUCGCAUGCUCUAGCGACCUUUUCGGCUUCGGCGUACGCACAUCGCAGCAAC 49.41%
Apta_410 RNA GGGAGAGCGGAAGCGUGCUGGGCCUGUCGUUCGCUGUGUCUUGCUACGUUACGUUACACGGUUGGCAUAACCCAGAGGUCGAUGG 49.41%
Apta_129 RNA GGGAGGACGAUGCGGACACCGUUAAUCUGAGGCCCUGUCCUAUUCCUUCACGCCUCAGA 49.35%
Apta_130 RNA GGGAGGACGAUGCGGUGGUAGCGCGAUAUAGCGCUGGUAGGGUUGCCGGUGAUCAGACGACUCGCCCGA 49.35%
Apta_431 RNA CAGGCAUGCCUAGCUAAGCAGCCCAUGGCUUAUGCGCGGAAUAUUGGCUUCCGUUC 49.35%
Apta_460 RNA GGAUGGCAGCGGAGAGUUGCUUGGAAUGCGUUAUAGUCUCUUAGGUGUGUACAGCCCACACCACUCUCC 49.35%
