Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 5
Aptamer sequence: GGGAGAGCCAUACCUGACAAAGACGCUAGCGAAUUGGUUCCUCACUCAAAAGUAGGGGAAAGCGUUAUUAAGAAACCAAAAUUUGACAGGUUACGCAUCCUGCAUCCUCCAGGUUACGCAUCC
Target unique ID: G3GC05
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_5 | Family II | Protein | G3GC05_BEMTA | 4.7 nM | 10 mM HEPES (pH 7.5) and 10 mM MgCl2 | 11094337 |
Structure information of aptamer
| Aptamer Sequence: | GGGAGAGCCAUACCUGACAAAGACGCUAGCGAAUUGGUUCCUCACUCAAAAGUAGGGGAAAGCGUUAUUAAGAAACCAAAAUUUGACAGGUUACGCAUCCUGCAUCCUCCAGGUUACGCAUCC |
| The optimal secondary structure in dot-bracket notation: | .(((..((...(((((.....((((((..........(((((((((....))).)))))))))))).................((.((((........)))))).....)))))...)).))) |
| The centroid secondary structure in dot-bracket notation: | .(((..((...(((((.....((((((..........(((((((((....))).))))))))))))..................(.((((........)))))......)))))...)).))) |

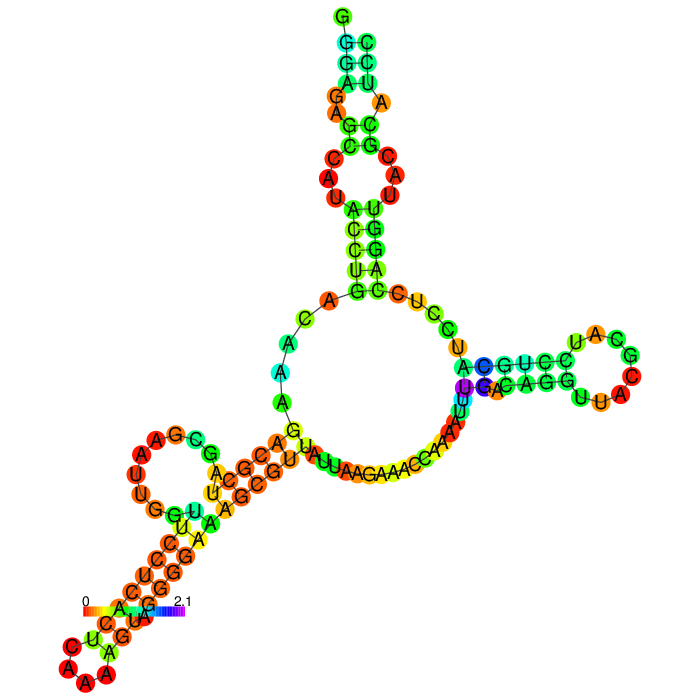

The MFE structure

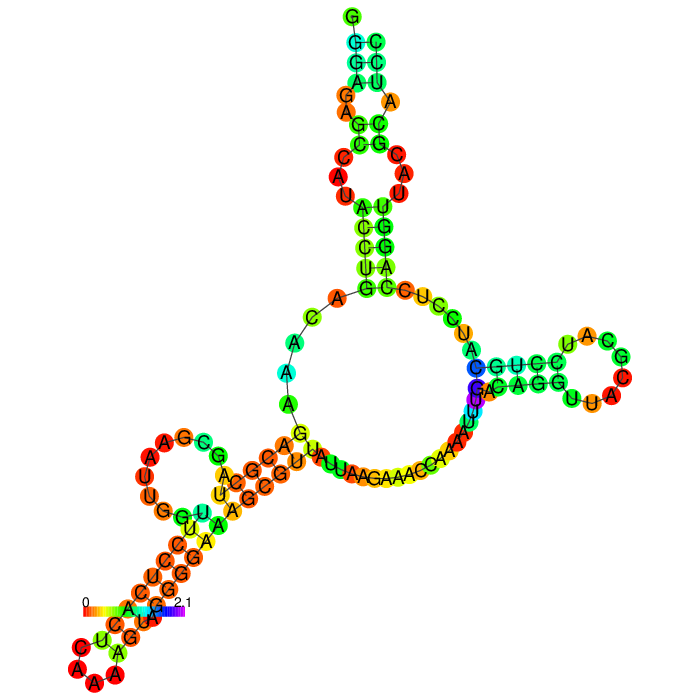

The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_5 | Description | Family II |
| Aptamer chemistry | RNA | Length | 123 nt |
| GC content | 47.2% | Molecular weight | 39,558.58 Da |
| Molarity of 1 μg/μl solution | 25.28 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Targeted binding |
| Sequence | GGGAGAGCCAUACCUGACAAAGACGCUAGCGAAUUGGUUCCUCACUCAAAAGUAGGGGAAAGCGUUAUUAAGAAACCAAAAUUUGACAGGUUACGCAUCCUGCAUCCUCCAGGUUACGCAUCC | ||
| Applications | Regulated kinase 2 (ERK2) | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Uniprot ID | G3GC05 | Protein name | Mitogen-activated protein kinase (EC 2.7.11.24) |
| Gene name(s) | Erk1/2 | Organism | Mitogen-activated protein kinase (EC 2.7.11.24) |
| Status | unreviewed in uniprot database | Length | 363 |
| Mass | 41,910 | Activity regulation | Activated by threonine and tyrosine phosphorylation |
| Involvement in disease | N/A | Catalytic activity | Reaction=ATP + L-seryl-[protein] = ADP + H(+) + O-phospho-L-seryl-[protein] |
| PDB ID(s) | N/A |
 |
Function | N/A |
Activity data
 |
Interaction ID | 5 |
| Target type | Protein | |
| Target unique ID | G3GC05 | |
| Activity | 4.7 nM | |
| Binding Conditions/Buffer | 10 mM HEPES (pH 7.5) and 10 mM MgCl2 |
|

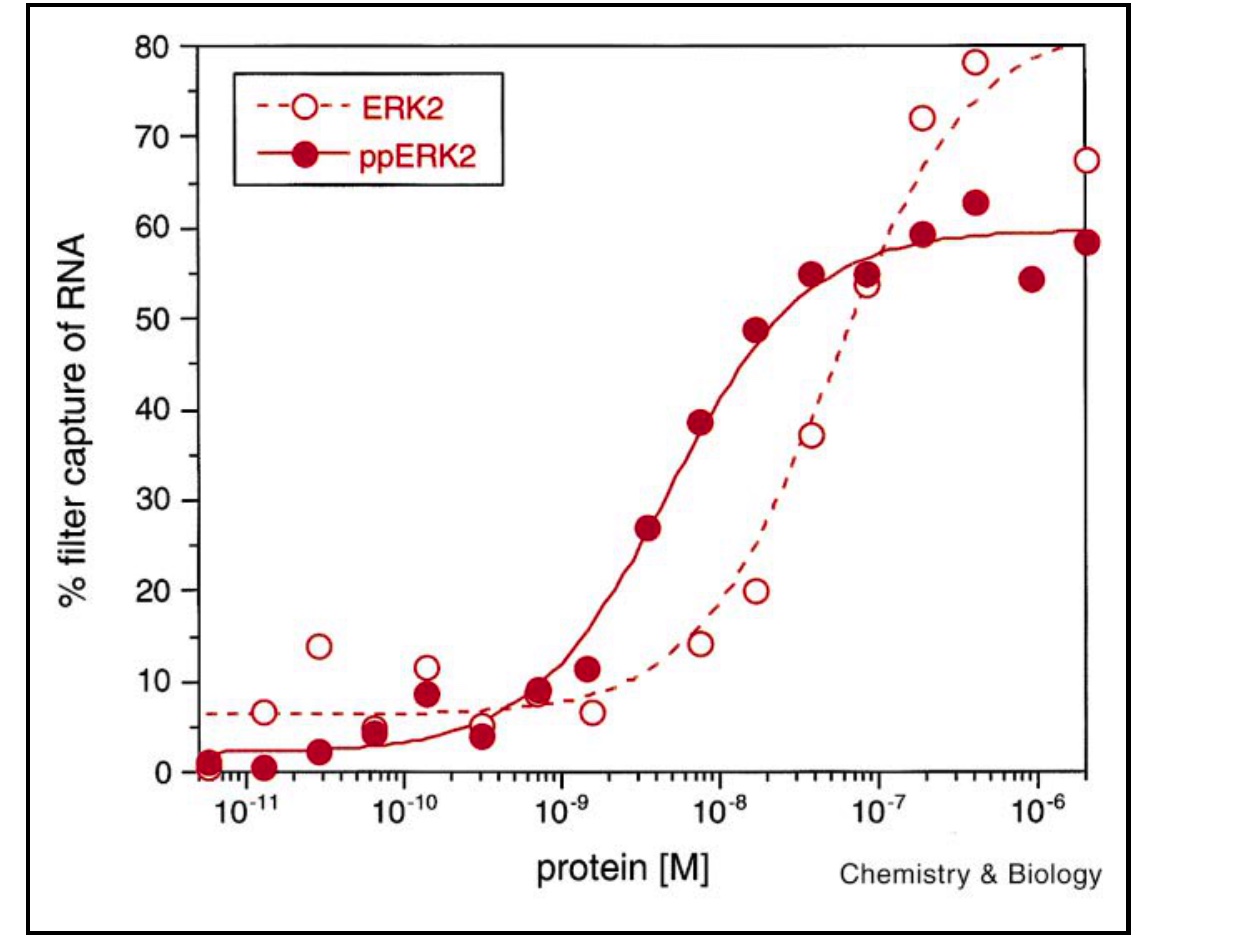

| Assay | Dissociation constants of family II RNA. Trace, 5P-end labeled family II RNA was incubated with diphosphorylated or unphosphorylated ERK2 over a protein concentration range from 2 WM to 5.6 pM. RNA-protein complexes were captured on nitrocellulose membranes and data were analyzed as described |
|
| PubMed ID | 11094337 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_382 | RNA | GGCGUGACCUGAUGAGUCACGCAGACGCUAGCGAAUUGGUUCCUCGAAAGGGGAAAGCGUUAUUAAGAAACCAAAAUGUGUUACGAAACGUUCCC | |
| Apta_1289 | RNA | GGGAGAGGAUACUACACGUGGAAAAACCAACAAAUUGGGAAAAAUGUUAAGGGUCCACUUCAUGCCAUUGCAUGUAGCAGAAGCUUCCG | |
| Apta_1222 | RNA | GGAGGCGCCAACUGAAUGAAACCGUGCUAAGGAGUUGGACUCCGCUGCUUCGGCAGAGCGAUAUAGUGCCAGCUGAUACAUCCGUAACUAGUCGCGUCAC | |
| Apta_433 | RNA | GGGAGACAAGAAUAAACGCUCAACGUUCAGUAUAACAGUCCGAGUCUAACACACAAUGGGACACUGAAUUCGACAGGAGGCUCACAACAGGC | |
| Apta_724 | RNA | GGGAGAGGAUACUACUGUCAUACGUUAGGCUGUAGGCGAGGUGAAAUGAGCGGUAAUAGCCUCAGCGUAGCAUAUGCAUGAAUUCGAAGCUUCGC | |
| Apta_59 | RNA | GGACCUCGGCGAAAGCUAACGUCUCAUGGCUAAAUUGCCAUGUUGCUACAAAUGAUAUGACUAGAGAGGUUAGGUGCCUCGUGAUGUCCAGUCGC | |
| Apta_157 | RNA | GGGUUCACUGCAGACUUGACGAAGCUUACAAACAAGAGCAAAAAGGGAGUUGACGUAGACUGUGCGGAAUGGAUCCACAUCUACGAAUUC | |
| Apta_432 | RNA | GGGAGACAAGAAUAAACGCUCAAGGCAUUUCUGCUAGUCUGGUUGUAAGAUAUUCAACACGUGAGUUUCGACAGGAGGCUCACAACAGGC | |
| Apta_719 | RNA | GGAAUGGAUCCACAUCUACGAAGGCUUUGAAGGUGAGACCGUGCAAAUGAGGAUGGUGUGGAUGAUUAGGGUUGUCGGUUUUCACUGCAGACUUGACGAAGCUU | |
| Apta_720 | RNA | GGGAGAAUUCCGACCAGAAGCUUAGUAUAGCGAGGUUUAGCUACACUCGUGCUGAUCGUUUGGUACGGGACCUGCGUGUAGCCCAUAUGUGCGUCUACAUGGAUCCUCA | |
| Apta_1221 | RNA | GGAGGCGCCAACUGAAUGAACGAGUUGAAAUGCGGAUCAAGUUACUGCUUCGGCAGUACCUAGUGGGAAAAGUUCUUGGGUCCGUAACUAGUCGCGUCAC | |
| Apta_6 | RNA | GGAAAGACGCUAGCGAAUUGGUUCCUCGAAAGGGGAAAGCGUUAUUAAGAAACCAAAAUUUCC | |
| Apta_137 | RNA | GGGAGACAAGAAUAAACGCUCAAGUGACGUCCUGAUCGAUUGUGCAUUCGGUGUGACGAUCUUUCGACAGGAGGCUCACAACAGGC | |
| Apta_376 | RNA | GGGAGCUCAGCCUUCACUGCACUCCGGCUGGUGGACGCGGUACGAGCAAUUUGUACCGGAUGGAUGUUCGGGCAGCGGUGUGGCAGGGAUGAGCGGCACCACGGUCGGAUCCAC | |
| Apta_557 | RNA | GGAACACUAUCCGAUGGCACCGACCAUAGGCUCGGGUUGCCAGAGGUUCCACACUUUCAUCGAAAAGCCUAUGCUAGGCAAUGACAUGGACUCCUUGGUCAUUAGGAUCG | |
| Apta_723 | RNA | GGGAGCUCAGAAUAAACGCUCAAAUCCGUGGACAGGGCGUAAGCGCCUUCGACAUGAGACACGGAUCCUGCGACGAAUUCAGC | |
| Apta_885 | RNA | GGGAGAGCGGAAGCGUGCUGGGCCUGGUUGCUGUAAAAAUAGACACGAAUCUGCCGACCAUAACCCAGAGGUCGAUGGAUCCCCCC | |
| Apta_936 | RNA | GGAGCUCAGCCUUCACUGCGAUCACCGUGUCGGUGGCUAGUCGAUGUAUCCCGAUCACCAUUGGGGGCAAGUUUAGACAGGCACCACGGUCGGAUCCAC | |
| Apta_1225 | RNA | GGAGGCGCCAACUGAAUGAAAGAGGUAACGAAAGAUGAUUGUGCCUGCUUCGGCAGUACAACUUCUCGGAUAAAUGAUUAUCCGUAACUAGUCGCGUCAC | |
| Apta_156 | RNA | GGGAGAAUUCCGACCAGAAGGGUUAGCAGUCGGCAUGCGGUACAGACAGACCUUUCCUCUCUCCUUCCUCUUCU |
