Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 926
Aptamer sequence: TGAGCCCAAGCCCTGGTATGCGGATAACGAGGTATTCACGACTGGTCGTCAGGTATGGTTGGCAGGTCTACTTTGGGATC
Target unique ID: BAA-2587-PACK
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_840 | Apt-5 | Cell | Enterohemorrhagic Escherichia coli O157:H7 (E. coli O157:H7) | 9.04 nM | 1× BB, 50 mmol/L Tris-HCl (pH 7.4), 5 mmol/L KCl, 100 mmol/L NaCl, and 1 mmol/L MgCl2 | 29756774 |
Structure information of aptamer
| Aptamer Sequence: | TGAGCCCAAGCCCTGGTATGCGGATAACGAGGTATTCACGACTGGTCGTCAGGTATGGTTGGCAGGTCTACTTTGGGATC |
| The optimal secondary structure in dot-bracket notation: | ....((((((.((((.(((((.(((.((.((..........)).)).)))..)))....)).)))).))....))))... |
| The centroid secondary structure in dot-bracket notation: | ....(((((..((((...(((.(((.((.((..........)).)).)))..))).......))))......)))))... |

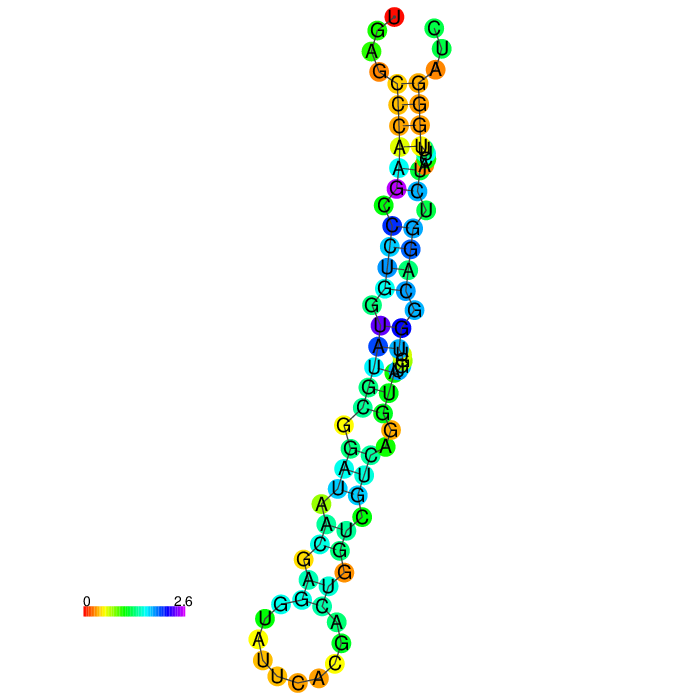

The MFE structure

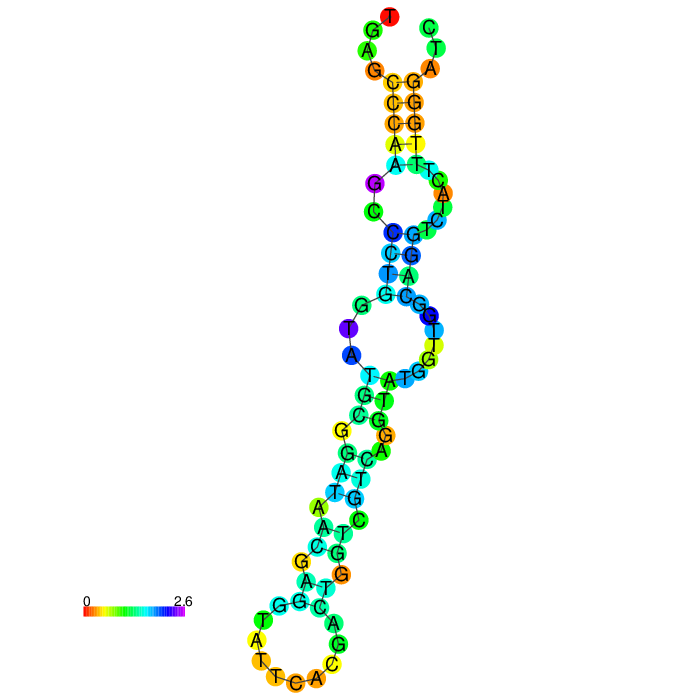

The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_840 | Description | Apt-5 |
| Aptamer chemistry | DNA | Length | 80 nt |
| GC content | 53.8% | Molecular weight | 24,812.85 Da |
| Molarity of 1 μg/μl solution | 40.30 μM | Number of G-quadruplexes | 2 |
| G-Score | 20 | Function | Targeted binding |
| Sequence | TGAGCCCAAGCCCTGGTATGCGGATAACGAGGTATTCACGACTGGTCGTCAGGTATGGTTGGCAGGTCTACTTTGGGATC | ||
| Applications | Binding to Enterohemorrhagic Escherichia coli O157:H7 (E. coli O157:H7) | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| ATCC ID | BAA-2587-PACK | Cell name | Enterohemorrhagic Escherichia coli O157:H7 (E. coli O157:H7) |
| Category | Bacteria | Organism | N/A |
| Product type | Reporter-labeled bacterium | Cell type | N/A |
| Morphology | N/A | Tissue | N/A |
| Disease | N/A | Product format | Frozen |
| Antigen expression | N/A | Genes expressed | N/A |
| Cell description | A kit containing reporter-labeled Escherichia coli designed to distinguish control strain cross-contamination from true contamination in test samples. This product is appropriate for use as a positive control in quality control assays for E. coli. |
|
|
| Application(s) | Assay development; Food testing; High-throughput screening | ||
Activity data
 |
Interaction ID | 926 |
| Target type | Cell | |
| Target unique ID | BAA-2587-PACK | |
| Activity | 9.04 nM | |
| Binding Conditions/Buffer | 1× BB, 50 mmol/L Tris-HCl (pH 7.4), 5 mmol/L KCl, 100 mmol/L NaCl, and 1 mmol/L MgCl2 |
|

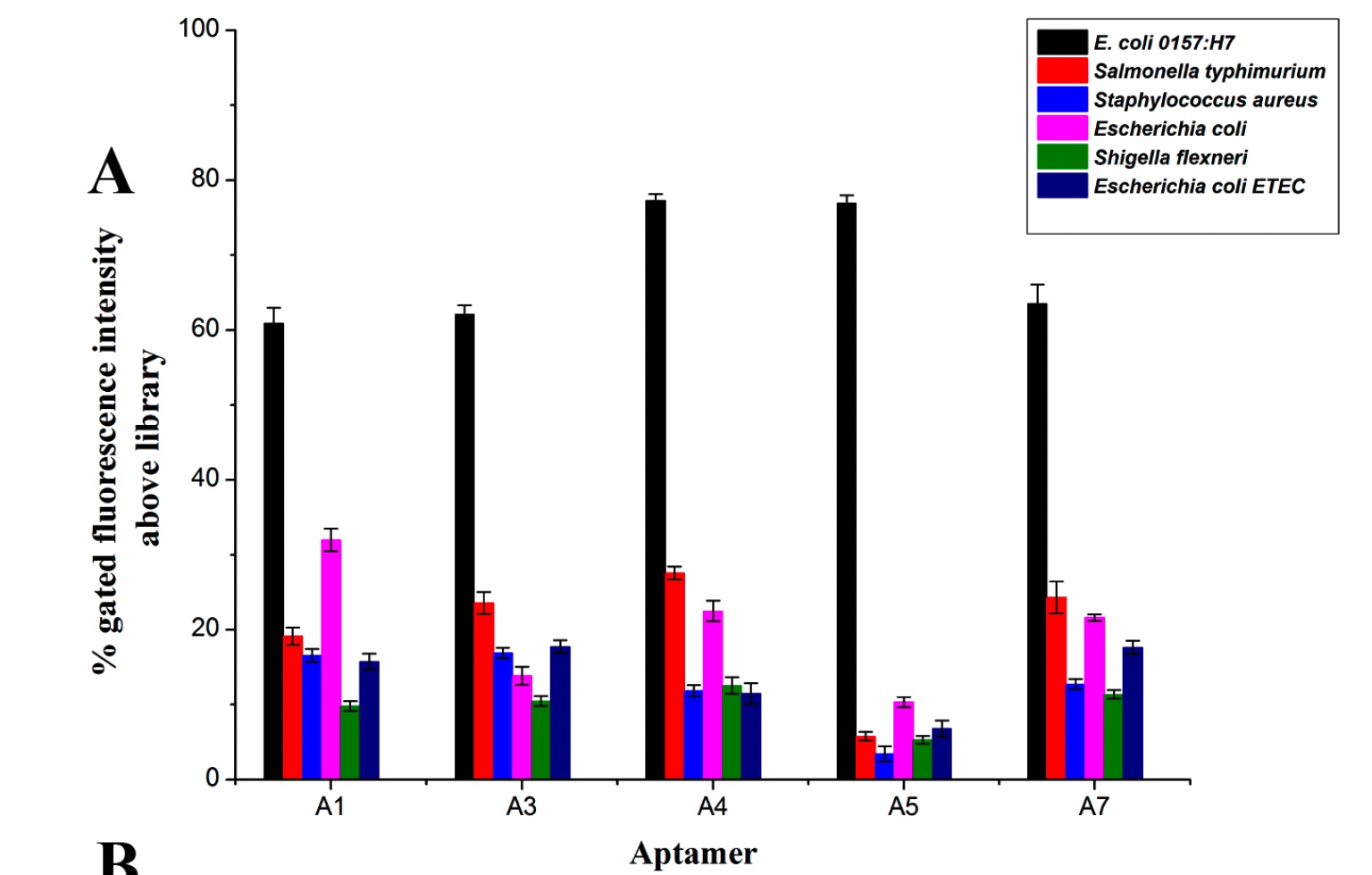

| Assay | Histogram of the percent gated fluorescence intensity above library background for individual aptamers |
|
| PubMed ID | 29756774 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_838 | DNA | TGAGCCCAAGCCCTGGTATGTAGTAATGGTGCGTACAGGCGACGGGGTCCAGGCTGGAGGGGCAGGTCTACTTTGGGATC | |
| Apta_837 | DNA | TGAGCCCAAGCCCTGGTATGTGATCGGTGACGAGGGTGCGGGGCGGGGGGTGAGGCACAGGGCAGGTCTACTTTGGGATC | |
| Apta_839 | DNA | TGAGCCCAAGCCCTGGTATGAGCCCACGGAACACTGGTCGCGCCCACTGGTTTCTATATTGGCAGGTCTACTTTGGGATC | |
| Apta_841 | DNA | TGAGCCCAAGCCCTGGTATGGTGTGCCTGTCGTTGTATTGGTCGGTAGGGATCGGAGTGGGGCAGGTCTACTTTGGGATC | |
| Apta_842 | DNA | TGAGCCCAAGCCCTGGTATGTGTGGGGTCCTGGATTATGTTTAGCGTCTTTCGCAGTGGGGGCAGGTCTACTTTGGGATC | |
| Apta_843 | DNA | TGAGCCCAAGCCCTGGTATGTCACATCCGGGTTCTTTGCGAACGCGTTTCCGCAGTCTCAGGCAGGTCTACTTTGGGATC | |
| Apta_844 | DNA | TGAGCCCAAGCCCTGGTATGTTGCGGGAGTCTAGCGGGCCACACTTTTATAGGTTCGCAGGGCAGGTCTACTTTGGGATC | |
| Apta_836 | DNA | TGAGCCCAAGCCCTGGTATGTTACAGTATGCTACCTCTACTTGAAGGTTGGTCGACGCGGGGCAGGTCTACTTTGGGATC | |
| Apta_568 | DNA | CCCAGCAGCACTGGTAGTGAGGCAGTTCACCGGTGGGGCGGTGAGTTTGGCTGCTATTTAT | |
| Apta_109 | DNA | AGCAGCACAGAGGTCAGATGTGCGACCACCTGGATAGACGAGGGTAGTAAGGAGTGTGTTCCTATGCGTGCTACCGTGA | |
| Apta_109 | DNA | AGCAGCACAGAGGTCAGATGTGCGACCACCTGGATAGACGAGGGTAGTAAGGAGTGTGTTCCTATGCGTGCTACCGTGA | |
| Apta_670 | DNA | TTGCCTAACCGTGAAGGTAAAACGATTTAGTCAAACGTGGGAGGGCGGTGGTGTTGACTGATCGATTTTATTCCA | |
| Apta_888 | DNA | GGCGACCCCCGGGCTACCAGACAATGTACGCAGCAAGAGTGACGGTCGTACCTCGGAGTC | |
| Apta_626 | DNA | ATACCAGCTTATTCAATTGGTGGTAGGATGGGCTCGATCGAGGTCTTCAGTCGGCTCGGTTTAGTTTATGTTCTCCTGTAGATAGTAAGTGCAATCT | |
| Apta_626 | DNA | ATACCAGCTTATTCAATTGGTGGTAGGATGGGCTCGATCGAGGTCTTCAGTCGGCTCGGTTTAGTTTATGTTCTCCTGTAGATAGTAAGTGCAATCT | |
| Apta_76 | DNA | CAGCGCTAGGGCTTTTAGCGTAATGGGTAGGGTGGTGCGGTGCAGATATCGGAATTGGTG | |
| Apta_103 | DNA | AGCAGCACAGAGGTCAGATGCATCGCATTATTCGCGGCCGGCCAACGAGAGTATGTTTCTCCTATGCGTGCTACCGTGAA | |
| Apta_103 | DNA | AGCAGCACAGAGGTCAGATGCATCGCATTATTCGCGGCCGGCCAACGAGAGTATGTTTCTCCTATGCGTGCTACCGTGAA | |
| Apta_899 | DNA | ATCCGTCACACCTGCTCTCGAATAGAGTATTCGATACTGACTTTATTTACCGTCTGGTGTTGGCTCCCGTAT | |
| Apta_979 | DNA | ATGAGTAGTGCGGAGGGATGTGAATACTGACGCGGTCATAGTCGCTGTTGTACCATTGA |
