Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 456
Aptamer sequence: ATACCAGCTTATTCAATTGAGTAAGAGTGCACTATGTTTTACGAGCCGTTTCCTCGGCAGATAGTAAGTGCAATCT
Target unique ID: Q15116
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_451 | PD4 | Protein | PDCD1_HUMAN | 19.80 nM | 4.5 g/L glucose and 5 mM MgCl2 in Dulbecco's PBS without calcium and magnesium | 35019367 |
Structure information of aptamer
| Aptamer Sequence: | ATACCAGCTTATTCAATTGAGTAAGAGTGCACTATGTTTTACGAGCCGTTTCCTCGGCAGATAGTAAGTGCAATCT |
| The optimal secondary structure in dot-bracket notation: | .......(((((((....)))))))..((((((((..(((....((((......)))))))..)).)))))).... |
| The centroid secondary structure in dot-bracket notation: | .......(((((((....)))))))..((((((((.........((((......)))).....)).)))))).... |

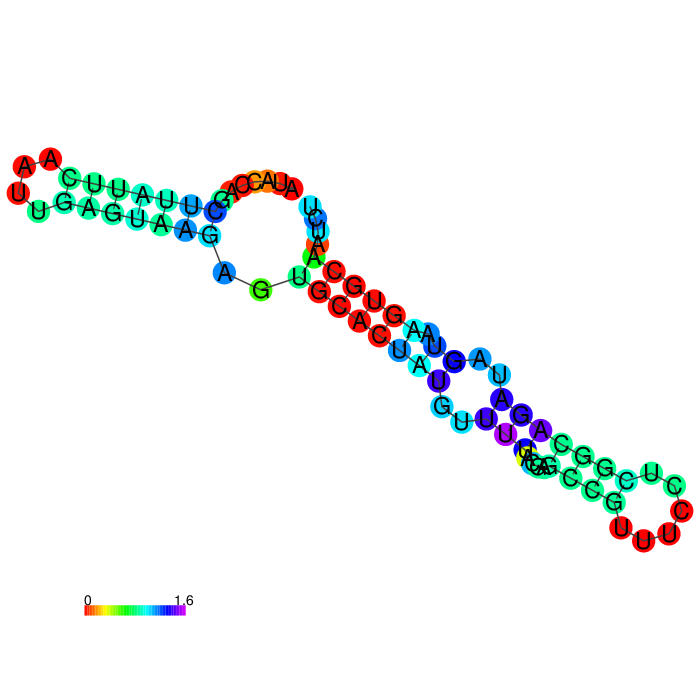

The MFE structure

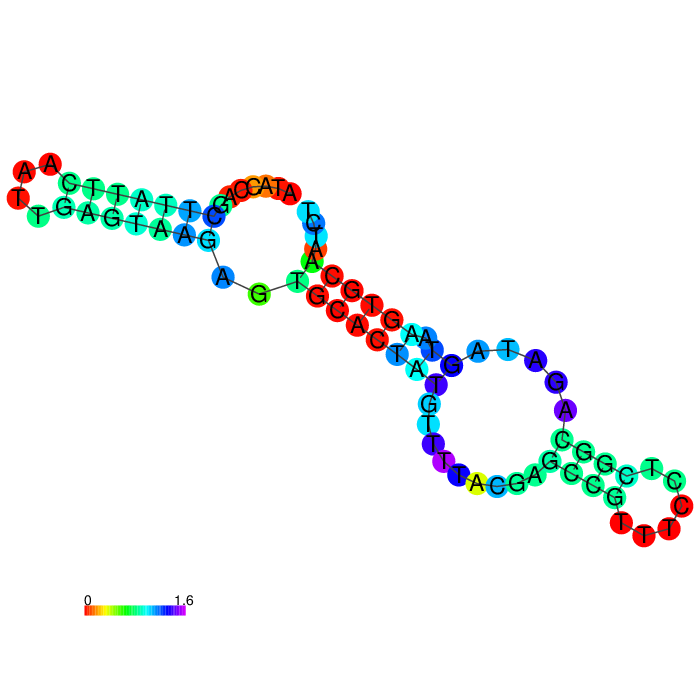

The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_451 | Description | PD4 |
| Aptamer chemistry | DNA | Length | 76 nt |
| GC content | 40.8% | Molecular weight | 23,421.04 Da |
| Molarity of 1 μg/μl solution | 42.70 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Targeted therapy |
| Sequence | ATACCAGCTTATTCAATTGAGTAAGAGTGCACTATGTTTTACGAGCCGTTTCCTCGGCAGATAGTAAGTGCAATCT | ||
| Applications | Antitumor Immunotherapy | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Uniprot ID | Q15116 | Protein name | Programmed cell death protein 1 (Protein PD-1) (hPD-1) (CD antigen CD279) |
| Gene name(s) | PDCD1 PD1 | Organism | Programmed cell death protein 1 (Protein PD-1) (hPD-1) (CD antigen CD279) |
| Status | reviewed in uniprot database | Length | 288 |
| Mass | 31,647 | Activity regulation | Inhibited by pembrolizumab |
| Involvement in disease | Systemic lupus erythematosus 2 (SLEB2) | Catalytic activity | N/A |
| PDB ID(s) | 2M2D;3RRQ;4ZQK;5B8C;5GGR;5GGS;5IUS;5JXE;5WT9;6HIG;6J14;6J15;6JBT;6JJP;6K0Y;6R5G;6ROY;6ROZ;6UMT;6UMU;6UMV;6XKR;7BXA;7CGW;7CU5;7E9B;7VUX; |
 |
Function | Inhibitory receptor on antigen activated T-cells that plays a critical role in induction and maintenance of immune tolerance to self. |
Activity data
|
No relevant experimental diagram |
Interaction ID | 456 |
| Target type | Protein | |
| Target unique ID | Q15116 | |
| Activity | 19.80 nM | |
| Binding Conditions/Buffer | 4.5 g/L glucose and 5 mM MgCl2 in Dulbecco's PBS without calcium and magnesium |
|
| Assay | N/A |
|
| PubMed ID | 35019367 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_349 | DNA | ATACCAGCTTATTCAATTAGACGAGTTTTATTCATTTTCCATGTCGTAGCTTACCGTGAGATAGTAAGTGCAATCT | |
| Apta_450 | DNA | ATACCAGCTTATTCAATTACATGTCCTGAAGGGGAATAATATACAGCTTTGGGTGGGTAGATAGTAAGTGCAATCT | |
| Apta_452 | DNA | ATACCAGCTTATTCAATTGAAGAGTATAAAAAGAGTGATTATCTTTTGTAGGTTTTTTAGATAGTAAGTGCAATCT | |
| Apta_884 | DNA | ATACCAGCTTATTCAATTTGCACCACTTATTGTTACTAATCTGAGATAGTAAGTGCAATCT | |
| Apta_727 | DNA | ATACCAGCTTATTCAATTAGTCACACTTAGAGTTCTAACTGCTGCGCCGCCGGGAAAATACTGTACGGTTAGATAGTAAGTGCAATCT | |
| Apta_1015 | DNA | ATACCAGCTTATTCAATTGACCCGTTTCGTTCCCTCTGGGAAGTTTAGCCCAGTTGCCTGGGCGATACCAAGATAGTAAGTGCAATCT | |
| Apta_627 | DNA | ATACCAGCTTATTCAATTATGCGGGGATGAGGCTTGATCTGTGGCTCTGATCCATGATCAGTCGTCTTACGTGCGGTCCAGATAGTAAGTGCAATCT | |
| Apta_627 | DNA | ATACCAGCTTATTCAATTATGCGGGGATGAGGCTTGATCTGTGGCTCTGATCCATGATCAGTCGTCTTACGTGCGGTCCAGATAGTAAGTGCAATCT | |
| Apta_31 | DNA | ATACCAGTCTATTCAATTGGGCCCGTCCGTATGGTGGGTGTGCTGGCCAGATAGTATGTGCAATCA | |
| Apta_1016 | DNA | ATACCAGCTTATTCAATTTCTTCGCCAGTGCCAGGATCTCAGTTGGCGGTTCATTAGCTGGGTTGGTCGAAGATAGTAAGTGCAATCT | |
| Apta_626 | DNA | ATACCAGCTTATTCAATTGGTGGTAGGATGGGCTCGATCGAGGTCTTCAGTCGGCTCGGTTTAGTTTATGTTCTCCTGTAGATAGTAAGTGCAATCT | |
| Apta_626 | DNA | ATACCAGCTTATTCAATTGGTGGTAGGATGGGCTCGATCGAGGTCTTCAGTCGGCTCGGTTTAGTTTATGTTCTCCTGTAGATAGTAAGTGCAATCT | |
| Apta_628 | DNA | ATACCAGCTTATTCAATTAGCCCGGTATTGAGGTCGATCTCTTATCCTATGGCTTGTCCCCCATGGCTCGGTTATATCCAGATAGTAAGTGCAATCT | |
| Apta_628 | DNA | ATACCAGCTTATTCAATTAGCCCGGTATTGAGGTCGATCTCTTATCCTATGGCTTGTCCCCCATGGCTCGGTTATATCCAGATAGTAAGTGCAATCT | |
| Apta_625 | DNA | ATACCAGCTTATTCAATTCAGGGCGGTATGAGGCTCGATCAAGGTCGGAGCGAGAATTTTTTCGCGGAGTCGGCTGGATCAGATAGTAAGTGCAATCT | |
| Apta_625 | DNA | ATACCAGCTTATTCAATTCAGGGCGGTATGAGGCTCGATCAAGGTCGGAGCGAGAATTTTTTCGCGGAGTCGGCTGGATCAGATAGTAAGTGCAATCT | |
| Apta_792 | DNA | ATACCAGCTTATTCAATTCCCAAATTGCCACCACTTACAGCATGATAACATACTACATCTTTTCATCAAGATAGTAAGTGCAATCT | |
| Apta_354 | DNA | ATACCAGCTTATTCAATTCTATACTCCACTTTGCTATTTCTCGGTTCCTTCACGCGCCGATCGCAGGCTGATGAATTGAGATAGTAAGTGCAATCT | |
| Apta_805 | DNA | ATACCAGCTTATTCAATTAGGCGGTGCATTGTGGTTGGTAGTATACATGAGGTTTGGTTGAGACTAGTCGCAAGATATAGATAGTAAGTGCAATCT | |
| Apta_583 | DNA | GTACCAGCTTATTCAATTGCGAGCAGGGTCAATGGAATTAATGATCAATTGACAGACGCAAGTCTCCTGCGGTCCTGTGTTGAGATAGTATGTTCATCAG |
