Aptamer-target interaction descriptor
Aptamer-target interaction information
Interaction ID: 960
Aptamer sequence: GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACAGAAGGACGUCGAAACGGUAGCGAGAGCUC
Target unique ID: Other-11
| Aptamer ID | Aptamer descriptor | Target chemistry | Target name | Affinity | Binding Conditions/Buffer | PubMed ID |
|---|---|---|---|---|---|---|
| Apta_874 | AR7 | Other | Theophylline and FMN | N/A | 50 mM Tris-HCl, pH 7.5, 20 mM MgCl2 | 11283591 |
Structure information of aptamer
| Aptamer Sequence: | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACAGAAGGACGUCGAAACGGUAGCGAGAGCUC |
| The optimal secondary structure in dot-bracket notation: | ........(((((.((((((....)))))).......(((..(((.(((((.(((...))).))))).....))).))).(((((.....)))))......)))))(((....))). |
| The centroid secondary structure in dot-bracket notation: | ........(((((.((((((....)))))).................((((.(((...))).))))..........(((.(((((.....))))))))...)))))(((....))). |

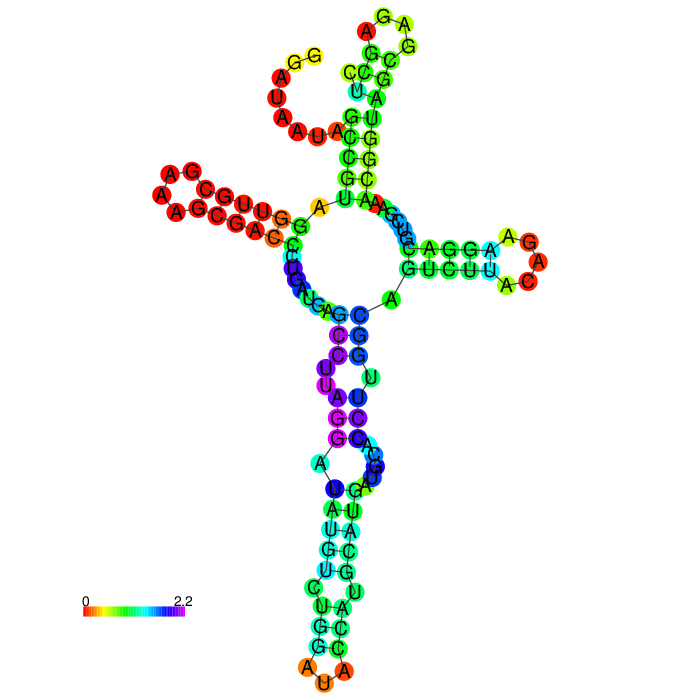

The MFE structure

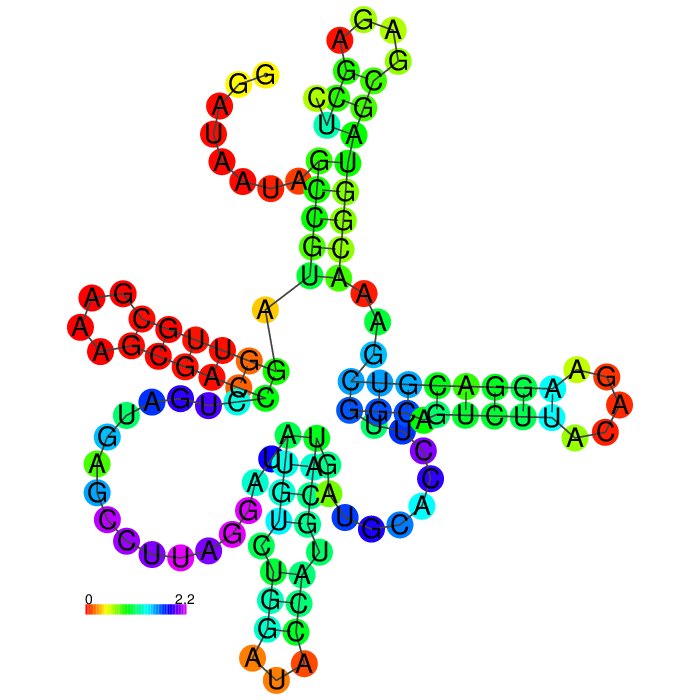

The Centroid structure
The mountain plot representation
Aptamer information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Aptamer ID | Apta_874 | Description | AR7 |
| Aptamer chemistry | RNA | Length | 117 nt |
| GC content | 51.3% | Molecular weight | 37,838.50 Da |
| Molarity of 1 μg/μl solution | 26.43 μM | Number of G-quadruplexes | No QGRS found |
| G-Score | N/A | Function | Targeted binding |
| Sequence | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACAGAAGGACGUCGAAACGGUAGCGAGAGCUC | ||
| Applications | Binding to FMN | ||
Target information
| Type | Detail | Type | Detail |
|---|---|---|---|
| Target ID | Other-11 | Name | Theophylline and FMN |
Activity data
|
No relevant experimental diagram |
Interaction ID | 960 |
| Target type | Other | |
| Target unique ID | Other-11 | |
| Activity | N/A | |
| Binding Conditions/Buffer | 50 mM Tris-HCl, pH 7.5, 20 mM MgCl2 |
|
| Assay | N/A |
|
| PubMed ID | 11283591 |
Similar aptamers
| Aptamer ID | Aptamer chemistry | Sequence | Similarity |
|---|---|---|---|
| Apta_710 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGUCUGGAUACCAUGCAUGAUGCACCUUGGCAGUCUUACGAAACGGUAGCGAGAGCUC | |
| Apta_613 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUAGGAUAUGCAUGAUGCAGAAGGACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_561 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUGUGGAAACAGACGUGGCACAUGACUACGUCGAAACGGUAGCGAGAGCUC | |
| Apta_563 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGAAAGCCAAAGCCGUAGCGCAGAUGAUCUCGCCAUCAGUACCGAAACGGUAGCGAGAGCUC | |
| Apta_562 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCUUUAGGGCCAAGUGUGGUGAAAGACACACUCGAAACGGUAGCGAGAGCUC | |
| Apta_566 | RNA | GGAUAAUAGCCGUAGGUUGCGAAAGCGACCCUGAUGAGCCCUGCGAUGCAGAAAGGUGCUGACGACACAUCGAAACGGUAGCGAGAGCUC | |
| Apta_551 | RNA | GGAUGUCCAGUCGCUUGCAAUGCCCUUUUAGACCCUGAUGAGCGGUGCUAGUUAGUUGCAGUUUCGGUUGUUACGCGAAACGGUGAAAGCCGUAGGUCU | |
| Apta_559 | RNA | GGAUGUCCAGUCGCUUGCAAUGCCCUUUUAGACCCUGAUGAGGAUCAUCGGACUUUGUCCUGUGGAGUAAGAUCGCGAAACGGUGAAAGCCGUAGGUCU | |
| Apta_276 | RNA | GGACCGAGAAGUUACCCUGUAAUCUUAGGAUGAAUCGCAUGCUCUAGCGACCUUUUCGGCUUCGGCGUACGCACAUCGCAGCAAC | |
| Apta_936 | RNA | GGAGCUCAGCCUUCACUGCGAUCACCGUGUCGGUGGCUAGUCGAUGUAUCCCGAUCACCAUUGGGGGCAAGUUUAGACAGGCACCACGGUCGGAUCCAC | |
| Apta_59 | RNA | GGACCUCGGCGAAAGCUAACGUCUCAUGGCUAAAUUGCCAUGUUGCUACAAAUGAUAUGACUAGAGAGGUUAGGUGCCUCGUGAUGUCCAGUCGC | |
| Apta_123 | RNA | GGGAGAAAGGGAAGCUUGAGCAGCAGGAGGGCCGGCGUUAGGGUUAGCGAGCCGAUUGAAAGAAGAAGGAACGAGCGUACGGAUCCGAUC | |
| Apta_280 | RNA | GAUAAUACGACUCACUAUAGGGUUCACUGCAGACUUGACGAAGCUUGCAGAAAAGGGGGAAGAAGAGGGUGAUUCAGGCGAGAGAAUGGAUCCACAUCUACGAAUUC | |
| Apta_294 | RNA | AUACCAGCUUAUUCAAUUGCCUGAUUAGCGGUAUCACGAUUACUUACCUUCGUUGCUGAGAUAGUAAGUGCAAUCU | |
| Apta_612 | RNA | GGGCGACCCUGAUGAGCCUUAGGAUAUGCUUCGGCAGAAGGACGUCGAAACGGUGAAAGCCGUAGGUUGCCC | |
| Apta_816 | RNA | GGGUUCACUGCAGACUUGACGAAGCUUGAGAGAUGCCCCCUGAUGUGCAUUCUUGUUGUGUUGCGGCAAUGGAUCCACAUCUACGAAUUC | |
| Apta_705 | RNA | CCGUAAUACGACUCACUAUAGGGGAGCUCGGUACCGAAUUCAAGGUACUCUGUGCUUGUCGAUGUGUAUUGAUGGCACUUUCGAGUCAACGAGUUGACAGAACAAGUAGUCAAGCUUUGCAGAGAGGAUCCUU | |
| Apta_296 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAAACCUGGUCUCUCUGUCAGCAAAGACUAUGTUGAGAUAGUAAGUGCAAUCU | |
| Apta_298 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAAACUGGUGUACCUCUUUGCCCUAUCUUAUCUGGAGAUAGUAAGUGCAAUCU | |
| Apta_299 | RNA | AUACCAGCUUAUUCAAUUGCCUGAAGACUGGAUAUACUCUUAAGCAUUUCUAUAAUCGAGAUAGUAAGUGCAAUCU |
